Features
➔Profiled steel welded lathe bed, stabilizing treated under artificial prescription ensures minimum distortion, excellent rigidity and vigorous strength.
➔Precise traveling of Y axis driven by double motors ensures stable performance of machine.
➔High precision rack transmission ensures high accuracy, fast speed and strong power.
➔Imported square linear guide rail ensures high accuracy, maximum work load and service time.
➔Best mechanical and electrical design with well selected branded parts with minimum breakdown rate.
➔Overall dust proof and water proof design protects all moving parts of the machine.
➔Ongoing filtration system is there to filter cutting oil from stone dust and to re-circulate cutting oil.
➔Precise traveling of Y axis driven by double motors ensures stable performance of machine.
➔High precision rack transmission ensures high accuracy, fast speed and strong power.
➔Imported square linear guide rail ensures high accuracy, maximum work load and service time.
➔Best mechanical and electrical design with well selected branded parts with minimum breakdown rate.
➔Overall dust proof and water proof design protects all moving parts of the machine.
➔Ongoing filtration system is there to filter cutting oil from stone dust and to re-circulate cutting oil.
Applications
![]() |
![]() |
![]() |
![]() | ![]() |
![]() |
Technical Specification
Model | 5X-R1203 | |
X,Y,Z,A,B Traveling Area | 1200mm x 500mm x 500mm x 360deg x 90deg | |
Z Traveling | 500 mm | |
X,Y,Z Driven System | X,Y,Z axes Ball screw, A and B gear Box | |
X,Y,Z, Motor | 1 KW servo motor Panasonic | |
Rotary Center to gantry Distance | 500 mm | |
Rotary system | Rotary For 300×300 square,1200 mm long Wooden/Stone Block engraving | |
Spindle | 5.5 KW watercool chinese Spindle | |
Controller | 5 axes weihong controller | |
Lubriation System | Automatic Pump | |
Application | Wood/stone piller Work | |
*Specification are liable to change without prior notice. |
Immediate Contact No.
075750 09631, 092276 78044
075750 09631, 092276 78044

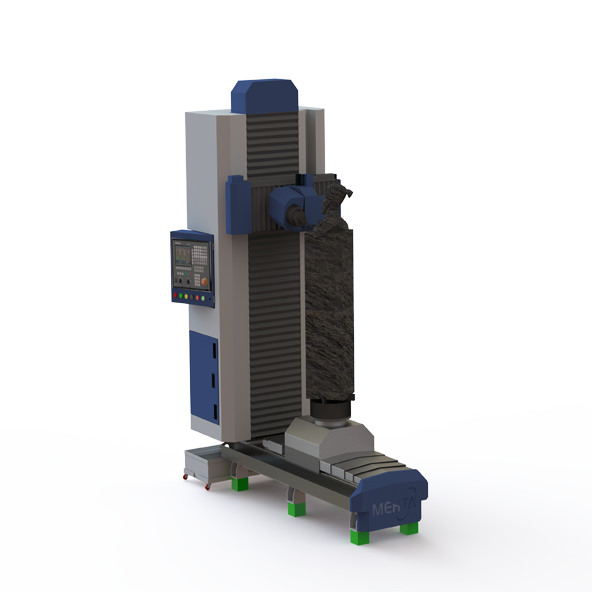

4 Axis And 5 Axis CNC Router
