Features
| 25 MM Linear guideways for high positional accuracy and long life with high motion accuracy. |
| Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time. |
| Fast speed and high accuracy ensured by gear transmission equipped on CNC router. |
| High accuracy and heavy workload ensured by imported square rail. |
| Lubrication maintenance provided by semi automatic lubrication system. |
| Axis drive system : X, Y – Helical Rack, Z – Ball Screw. |
| Working table is covered with rigid PVC sheet for long life aluminum T slot table. |
Application
 |
 |
 |
 |
 |
 |
Technical Specification

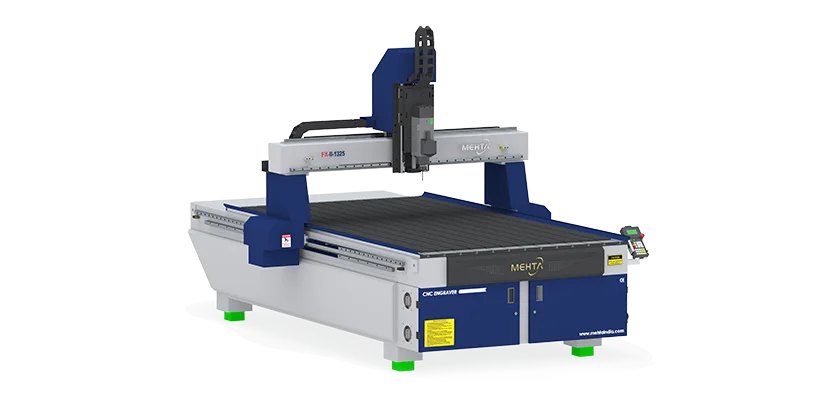

| Model | FX-II-1325 | |||
| Outer Dimension | 2150 x 3300 x 1700 mm | |||
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm | |||
| Spindle | 6 KW Air Cooled | |||
| Spindle Speed | 18000 RPM | |||
| Distance Between Bed & Gentry | 200 mm | |||
| Maximum Travelling Speed | 30 mtr/min | |||
| Cutting Tool Diameter | Ø3 to Ø16 mm | |||
| Repeated Location | 0.025 mm | |||
| Operating System | DSP-Hand Held Controller | |||
| Driving System | AC Servo Motor with Gear Box | |||
| Power Supply | AC 420V / 3PH | |||
| Weight | 970 Kg. | |||
| Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle. | ||||
Optional
 | Vacuum Bed System |  | Multi Spindle Router |
 | German Becker pump |  | Dust Collector |

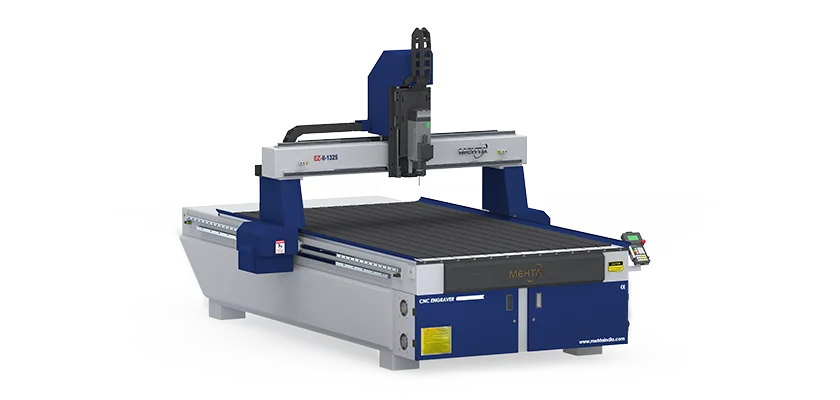

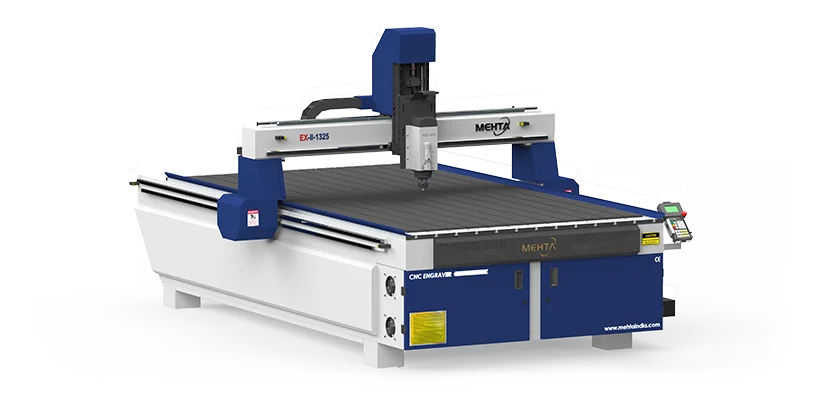

 | Other CNC Router LX series |  | Ring Type Blower |
