Features
Professional
➔Physical DSP marking card to complete calculation in 1us and 10us real-time positioning, ensuring hi-speed on-fly marking without deformation.
➔Provide precise lens correction, higher 1D/2D code read rate, more accurate meter count and more precise on-the-fly spacing.
➔Crossing point does not mark for text, effectively prevent heavy points problem.
➔Memorize 16 trigger positions, easy to install photoelectric sensor, speed up the line speed, reduce the miss marking opportunity.
Security
➔Shutter design, more safe, more reliable.
➔Enhanced anti-EMI ability; stable work in a harsh environment.
➔Support electricity losing to store the last marking file for job recovery.

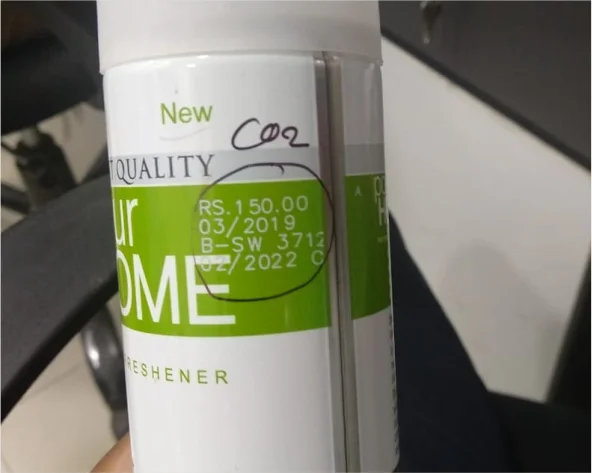

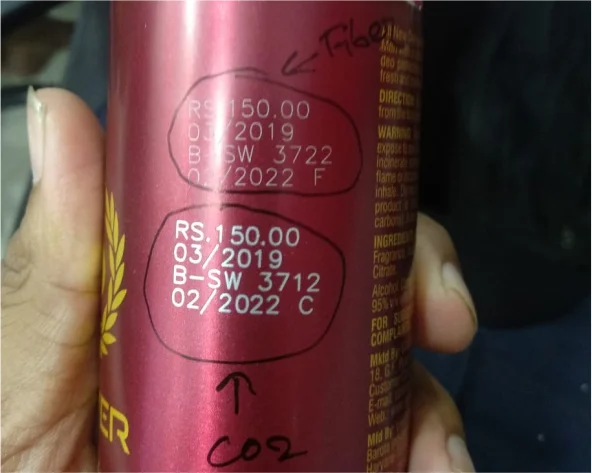

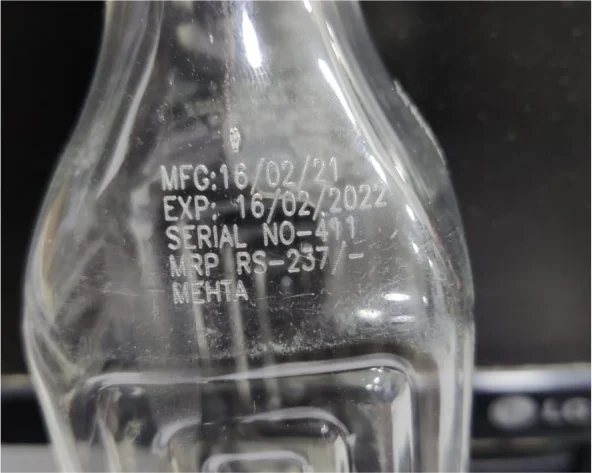

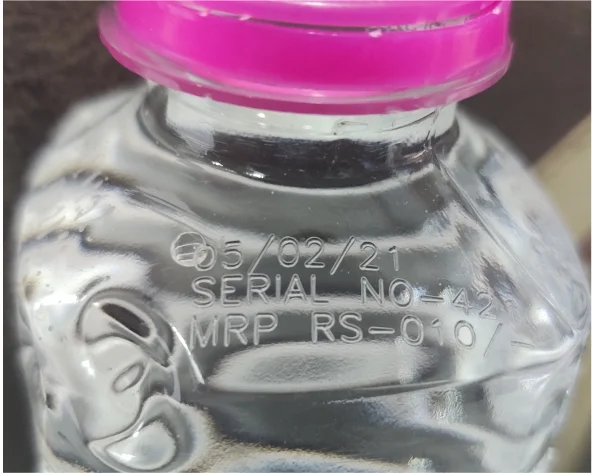

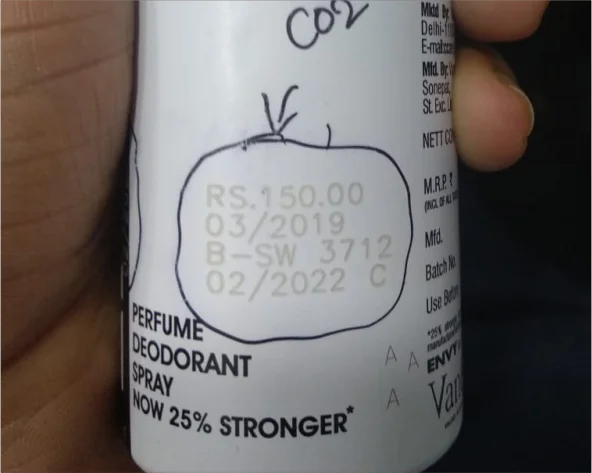

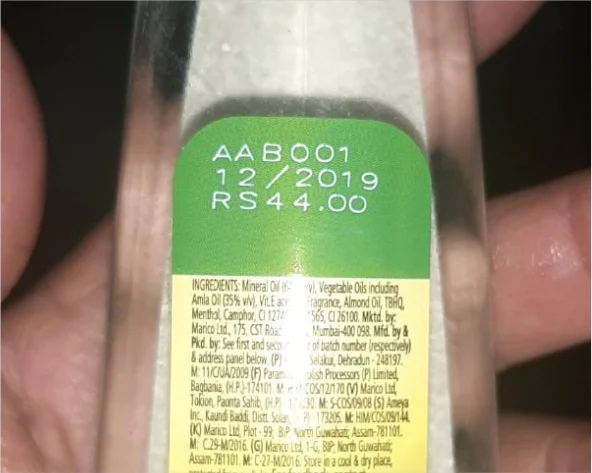

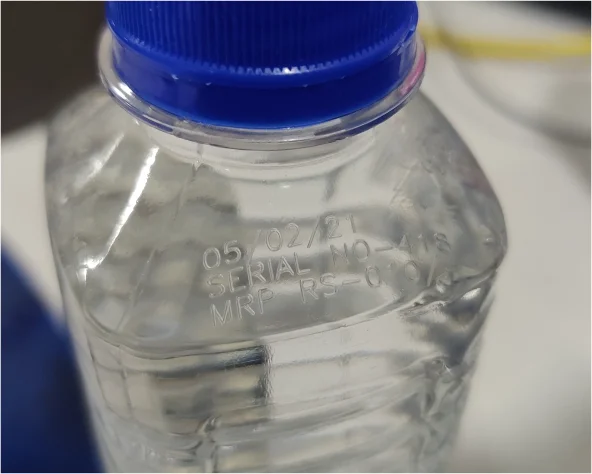

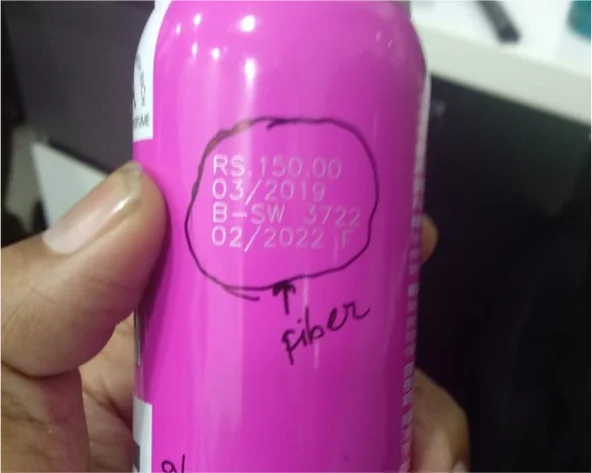

Applications
 |
 |
 |
 |
 |
 |
 |
 |
Technical Specification
| LJC-25 | LJC-30 | LJC-60 | |||
| Power | 30W | 60W | |||
| Laser Wavelength | Co2 10.64µm (Optional 10.2µm / 9.3µm) | ||||
| Line Speed | Max. 320M/min (Depends on marking content and material) | ||||
| Marking Features | Character Size: 0.4mm – Max. marking scope of lens | ||||
| Min. line width: 0.1mm | |||||
| Repeatability: <20urad | |||||
| Lens scope: 110*110mm, optional for 70*70mm, 140*140mm, 200*200mm | |||||
| Marking fonts: TrueType, single line font, dot matrix font (Support customized font) | |||||
| Language: English, Japanese, Russian | |||||
| Marking Mode: On-the-fly marking (Constant, Variable speed); Static marking; Precise cable marking (option); Online swapping file marking; Communication marking (RS-232, TCP/IP) | |||||
| High-speed scan head | |||||
| Other Features | The interconnection cable length is 2.5M between main enclosure and laser unit | ||||
| Power supply: 100-240V, 50/60HZ | |||||
| Environment temperature: 5-40°C | |||||
| Fan cooling | |||||
| Power Consumption | 750W | ||||
| Technical parameters are liable to change without prior notice. | |||||
| Optional | 1.2M stand lifter, lifting range: 830-1180mm |
| 1.6M stand lifter, lifting range: 830-1580mm | |
| Horizontal shifter, shifting range: 80-400mm, dimension: 245*170*12mm | |
| Optional Accessories: Encoder, Photo electronic sensor, Googles, USB disk |
