The LaserJet F Series fiber laser machines offer high-speed, precise marking for industrial parts and tools.
Model : LJF-20 / LJF-30 / LJF-50
Power Consumption : 750W
Laser Wavelength : 1064±4

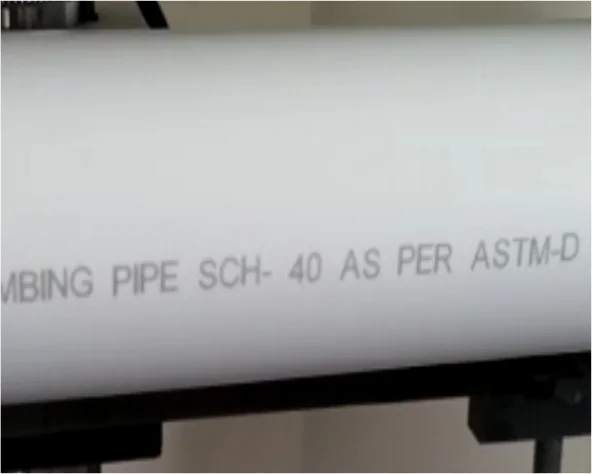

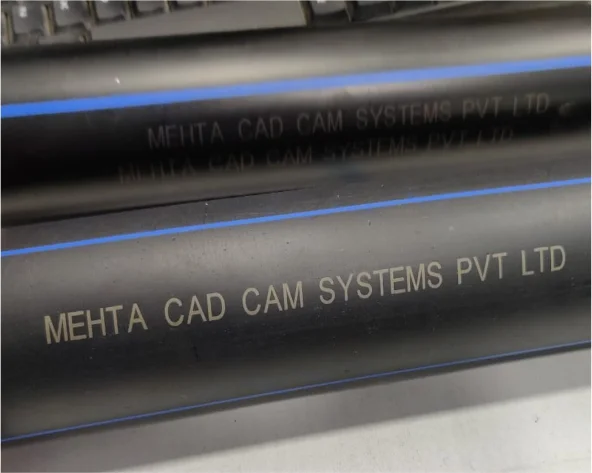

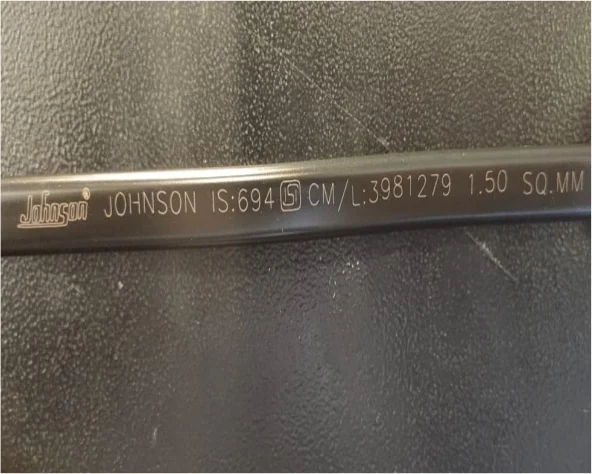

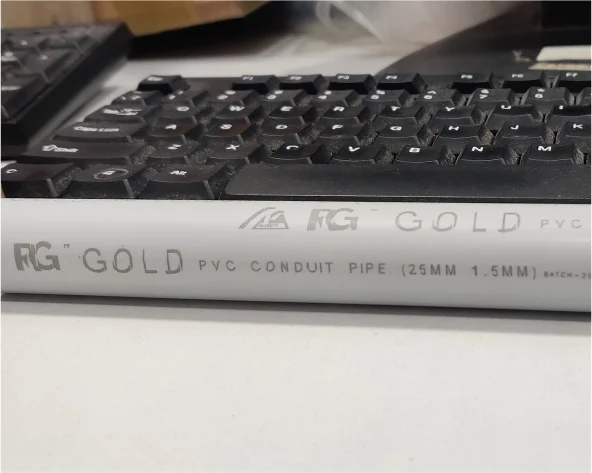

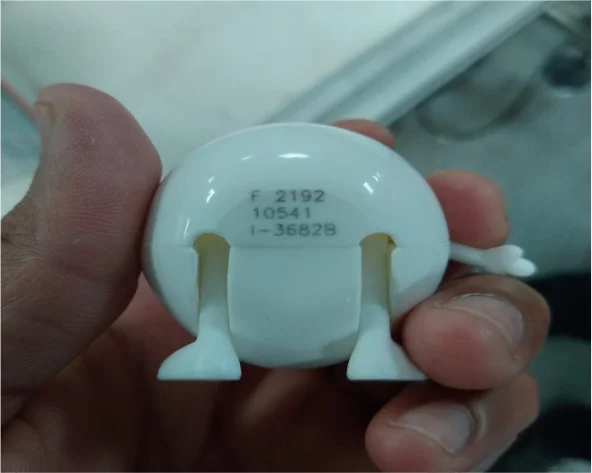

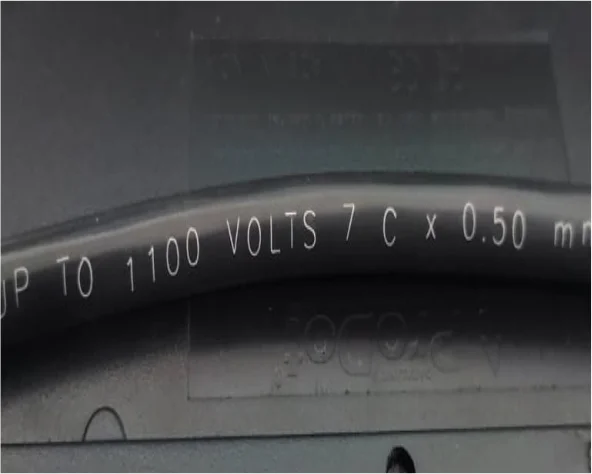

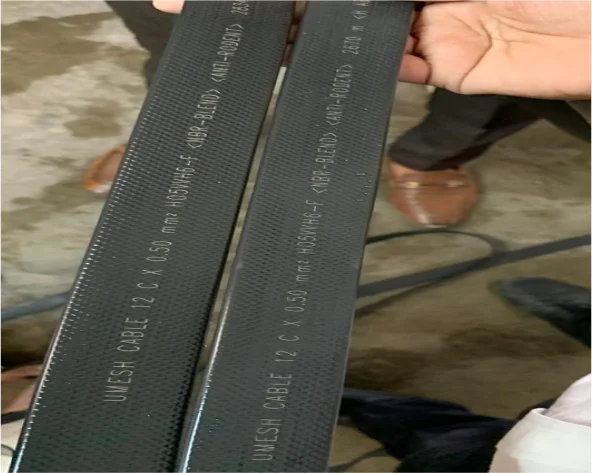

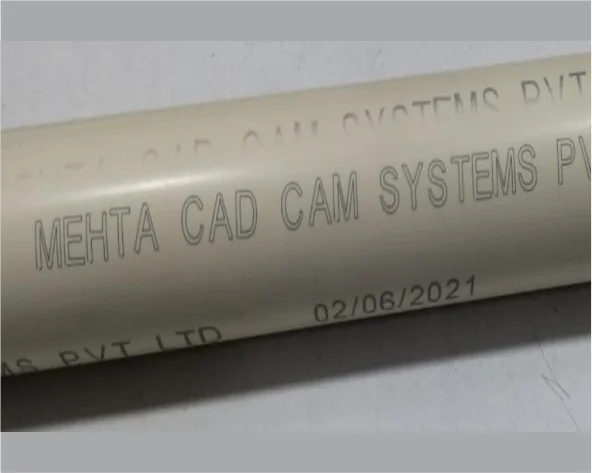

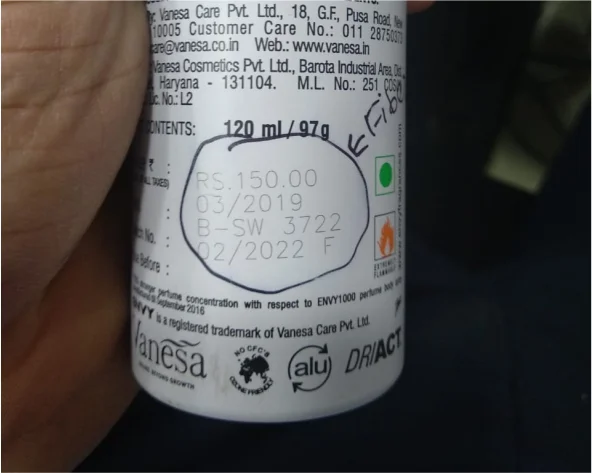

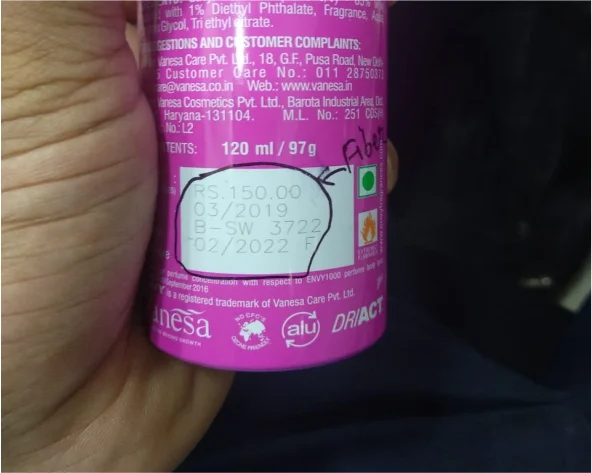

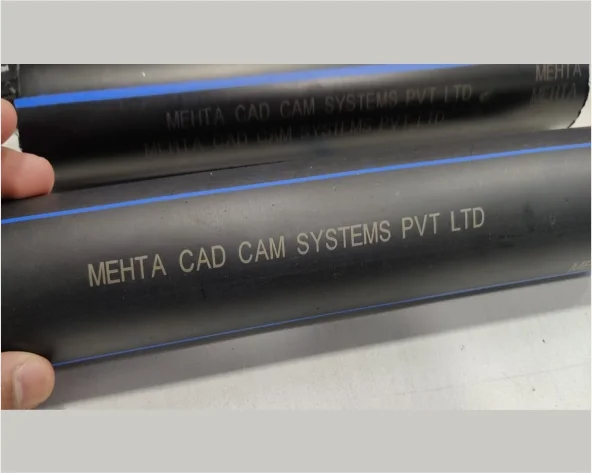

The LaserJet F Series fiber laser machines offer high-speed, precise marking for industrial parts and tools. With excellent contrast and permanent engraving, they are suitable for metals, alloys, and automotive or electronic components.
Positioning and focus guide indicators to have accurate mark positioning and quality.
Fast import and export file through external USB port.
Support mark file editing during on-fly marking.
Module design, few components, easy to disassemble and move.
Optimized marking path algorithms to fulfill on-the-fly marking with lower laser power.
Optical path integrated design and precise tuning to ensuring the max. effective laser power.
A fan-cooled laser, low-power consumption, long life, maintenance-free.
| Model | LJF-20 | LJF-30 | LJF-50 |
| Power | 20W | 30W | 50W |
| Laser Wavelength | 1064±4 | ||
| Line Speed | Max. 320M/min (Depends on marking content and material) | ||
| Marking Features | Character Size: 0.3mm – Max. marking scope of lens | ||
| Min. line width: 0.05mm | |||
| Repeatability: <20urad | |||
| Lens scope: 110*110mm, optional for 70*70mm, 140*140mm, 200*200mm | |||
| Marking fonts: TrueType, single line font, dot matrix font (Support customized font) | |||
| Language: English, Japanese, Russian | |||
| Marking Mode: On-the-fly marking (Constant, Variable speed); Static marking; Precise cable marking (option); Online swapping file marking; Communication marking (RS-232, TCP/IP) | |||
| High-speed scan head | |||
| Operation Method | 10” inch touch screen display | ||
| USB drive to upload or download file | |||
| Support encoder, pedal, I/O, photoelectronic sensor port | |||
| Support ethernet, USB, RS-232 port | |||
| Support remote operation | |||
| Other Features | The interconnection cable length is 2.5M between main enclosure and laser unit | ||
| Power supply: 100-240V, 50/60HZ | |||
| Environment temperature: 5-40°C | |||
| Fan cooling | |||
| Power Consumption | 750W | ||
