Features
➔The first high-power fiber cleaning laser machine in china.
➔No damage to the base because of no-touch cleaning way.
➔Precise cleaning for the specified position and size in selected area.
➔No need for chemistry and other supplies, thus safe and green.
➔Easy to operate with power on, can be hand-held or auto clean with robotic arm.
➔Finish cleaning in short time with high quality.
➔The stable unit is no need for repair.
➔No damage to the base because of no-touch cleaning way.
➔Precise cleaning for the specified position and size in selected area.
➔No need for chemistry and other supplies, thus safe and green.
➔Easy to operate with power on, can be hand-held or auto clean with robotic arm.
➔Finish cleaning in short time with high quality.
➔The stable unit is no need for repair.
Applications
![]() |
![]() |
![]() |
![]() |
![]() |

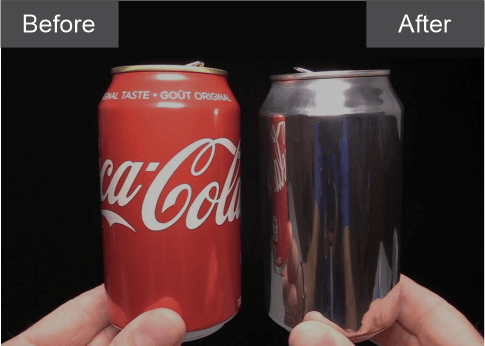

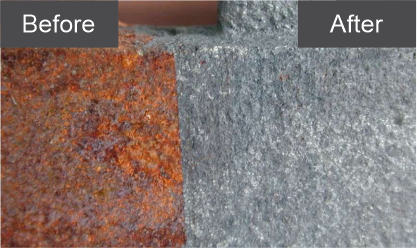

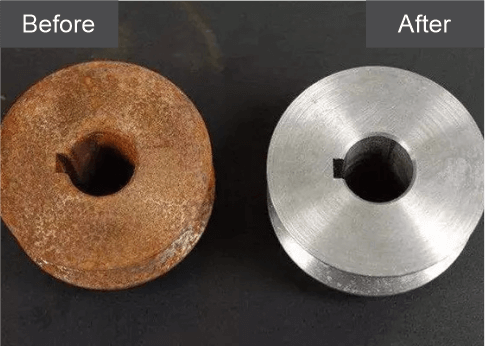

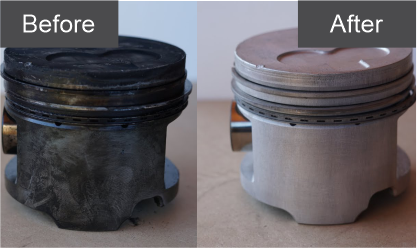

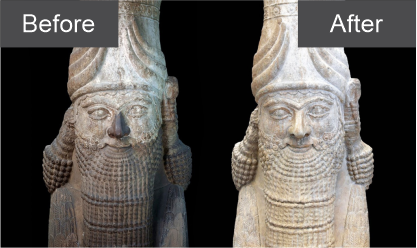

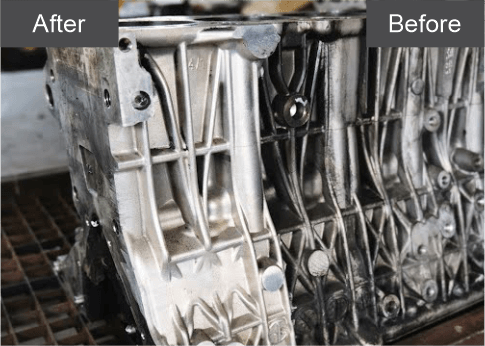

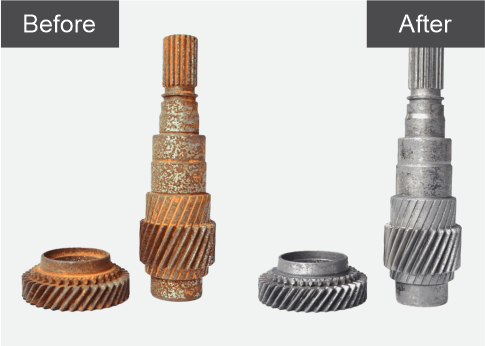

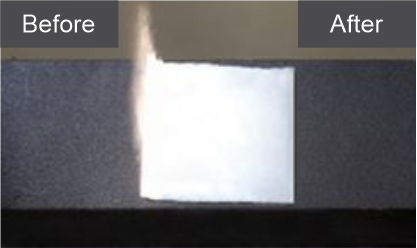

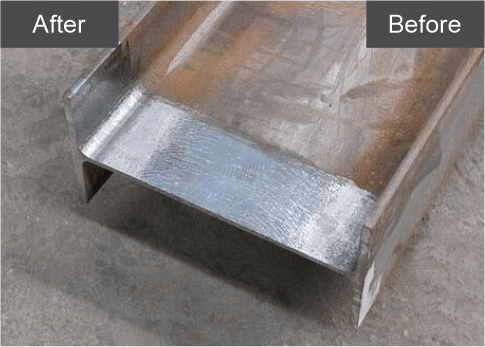

Clean Paint | Clean Oxide Layer | Clean Screw | Clean Oil Dirt | Clean Rust |
![]() |
![]() |
![]() |
![]() |
|

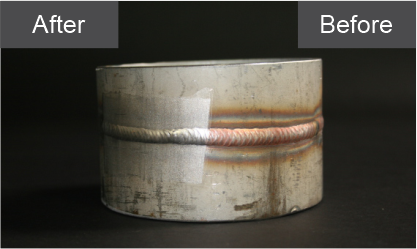

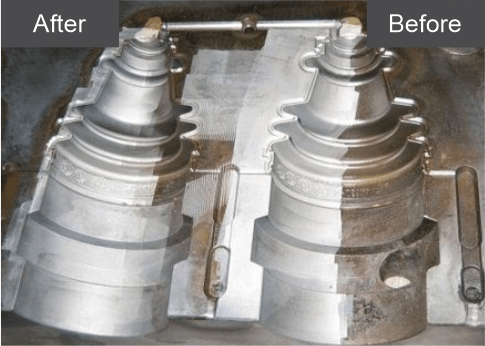

Clean Weld Joint | Tire Mold | Before Clean Tire Mold | After Clean Tire Mold |
Technical Specification
Model | RFL-7C-0050 | RFL-7C-0070 | RFL-7C-0100 | RFL-7C-0200 |
Laser medium | Yb-doped fiber | |||
Output power | 50W | 70W | 100W | 200W |
Wavelength | 1064nm | |||
Frequency | 20-100KHz | 20-100KHz | 20-200KHz | 20-50KHz |
Cooling way | Air-cooled | Air-cooled | Air-cooled | Water-cooled |
Cooling water | Deionizer water | |||
Water temperature | 19Cº | |||
Size | 760mmX780X790mm | 920mmX1200X840mm | ||
Weight | 56kg | 60kg | 65kg | 130kg(with water chiler) |
Input power | 350W | 500W | 600W | 1000W |
Scan field | 10-60mm | |||
Alternatives | Hand-hold/automate | |||
Operating temperature | 5-40Cº |
