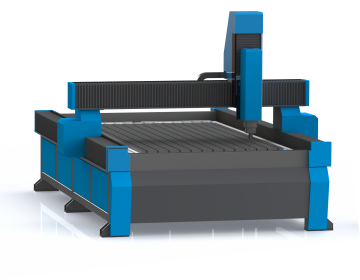

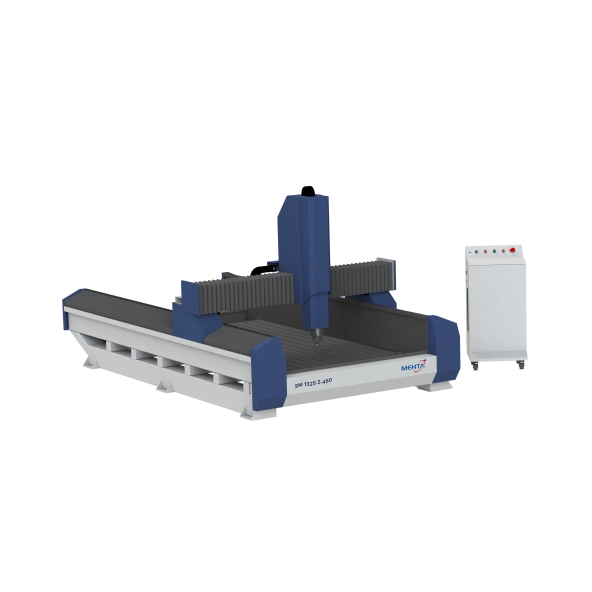

SM 1325/ 1530

  • Home
  • SM 1325/ 1530
Profiled steel welded lathe bed, stabilizing treated under artificial prescription ensures minimum distortion, excellent rigidity and vigorous strength.
Precise traveling of Y axis driven by double motors ensures stable performance of machine.
High precision rack transmission ensures high accuracy, fast speed and strong power.
Imported square linear guide rail ensures high accuracy, maximum work load and service time.
Best mechanical and electrical design with well selected branded parts with minimum breakdown rate.
Overall dust proof and water proof design protects all moving parts of the machine.
Ongoing filtration system provided which filters the cutting oil from stone dust and re-circulate cutting oil.

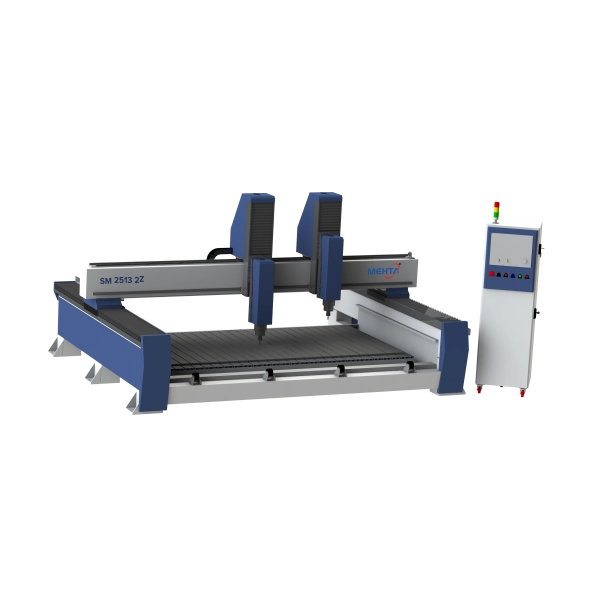

Model STONA-2513-2Z STONA-3021-2Z
Outer Dimension(W x L x H) 3630 x 2365 x 1575 mm 2585 x 4760 x 1600 mm
Machining Area 2500 x 1300 mm 3000 x 2100 mm
Spindle 7.5 KW (Water cooled spindle) 7.5 KW (Water cooled spindle)
Spindle RPM 24000 max 24000 max
Spindle Traveling 450 mm 450 mm
Controller New Advance DSP Hand Controller New Advance DSP Hand Controller
Distance between Bed and Gentry 450 mm 450 mm
Driving System Closed Loop Motor Closed Loop Motor
Cutting Tool Diameter Ø3 to Ø16 Ø3 to Ø16
Repeated Location 0.025 mm 0.025 mm
Max Running Speed 25 m/min 25 m/min
Weight 1800 Kg 2000 Kg
Power Supply AC 420V / 50Hz AC 420V / 50Hz
*Specification are liable to change without prior notice.
