Features
| Marking on non metal products |
| Marking on some non metals like PVC, Paper ABS, etc… |

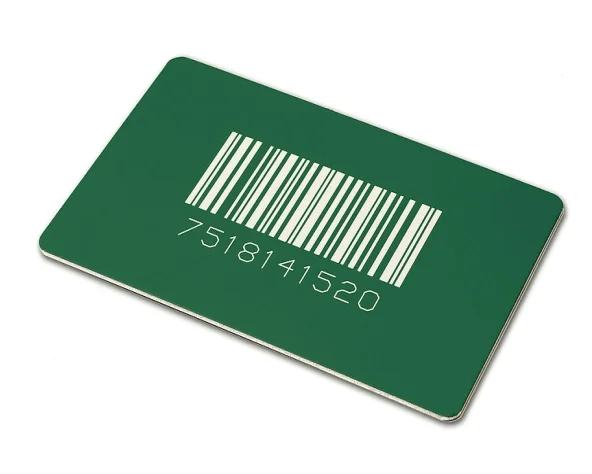

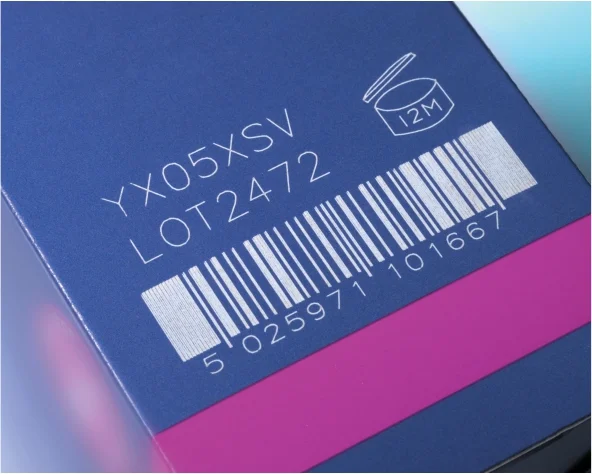

| Bar code / Data Matrix Marking |

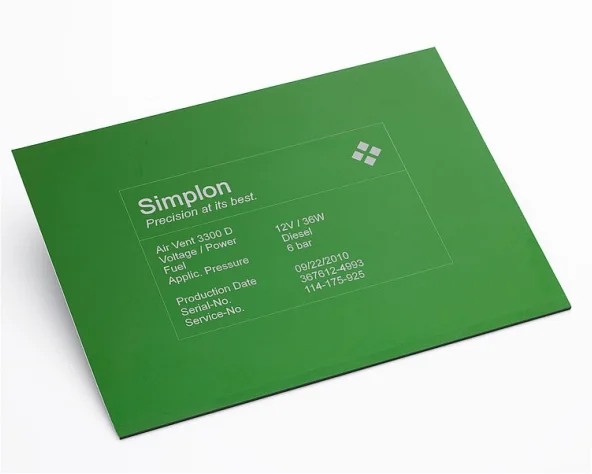

| Serial Number Marking |

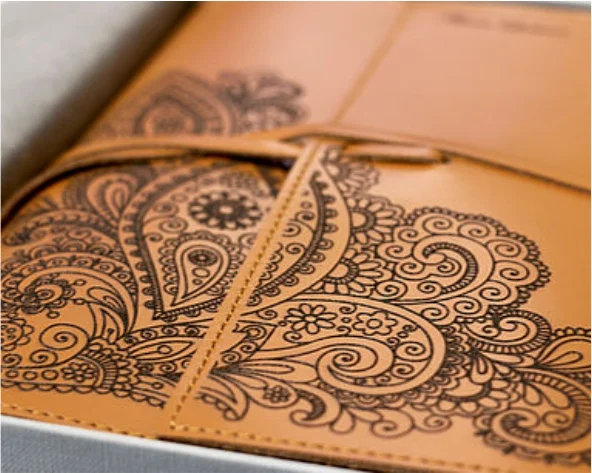

| Bitmap (Graphics) marking |
| High quality gray scale marking. |
| Long using time : the average using time more than 45000 hours. |
| Good stability and free maintenance: No need to do maintenance for laser device. |
| Stable performance, small size, low power consumption. |
| The operating system is flexible and convenient. |
| Stable performance, small size, low power consumption. |
| High speed marking (MHz repetition rate). |
| First and last pulse equally useable. |
| High repeatability/stability design. |
| Status monitoring and safe shut down. |
| Excellent beam quality, high stability output easy to debug the marking effect. |
| High electro-optical conversion efficiency, long useful period. |

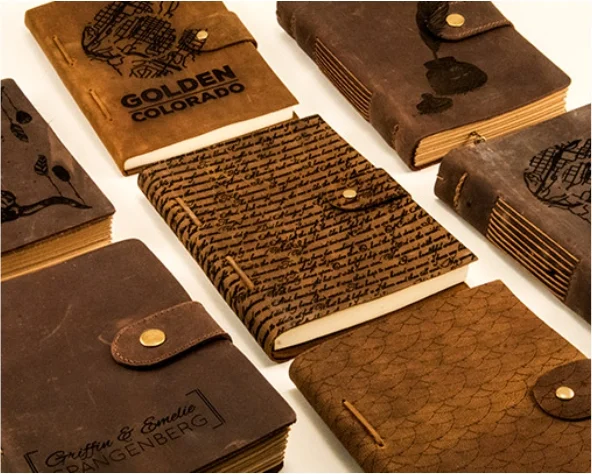

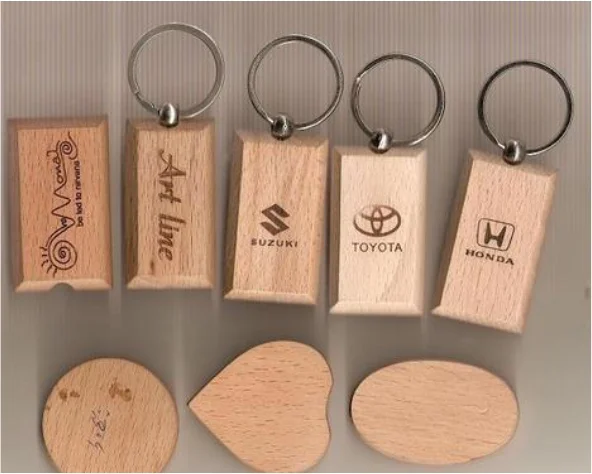

Applications
 |
 |
 |
 |
 |
 |
Technical Specification
| Model | Evan- 30C |
Evan- 60C |
| Output Power | 30 W | 60 W |
| Wavelength | 10.64 μm (Optional 10.2 μm / 9.3 μm) | |
| Power Adjustment | 0 to 100 % | |
| Cooling | Air Cooled / Water Cooled | |
| Min. Line Width | Min. 0.1 mm (Depend on Material) | |
| Max. Speed | Max. 10000 mm/s (Max. Linear Speed) | |
| Min Character Height | 0.4 mm | |
| Marking Range(mm/s) |
145 mm X 145 mm (Standard) Optional : 100 x 100 mm, 200 x 200 mm |
|
| Supporting Format | Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly | |
| Repeatability | <20 μrad | |
| Output Power Stability | <3% | |
| Max Power Consumption | 1 KW | |
| Parameters are different from marking materials and marking depth; our products continue to update, the specific configurations are subject to the newest quotation. | ||
