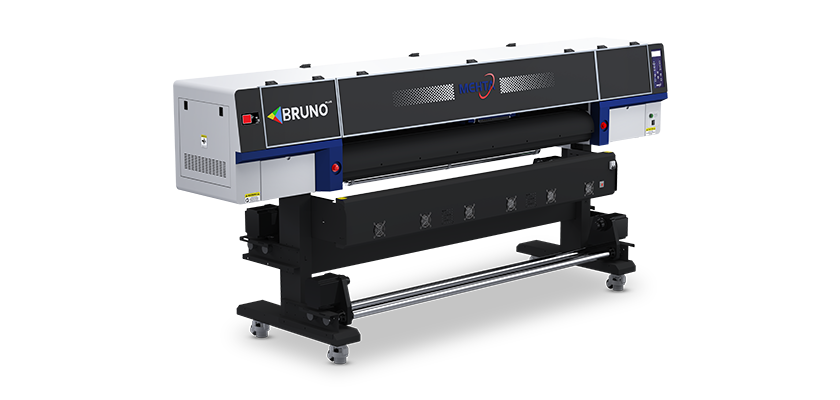

The Bruno plus 1602
Model : Bruno plus 1602
Print Heads : 1 × Epson i3200 E1 / 2 × Epson i3200 E1/ 4 × Epson i3200 E1/ 2 × Epson i3200 E1 Print Head
Technology : Drop-on-demand Piezo with Variable Dot
The Bruno Plus 1604 Epson i3200 E1 has high precision and high density (600 npi / 2 rows of nozzles) which contributes to compact, high speed, high quality, and high image quality as compared to Epson Dx5 head.The BRUNO PLUS 1604 Eco Solvent Inkjet Printer is equipped with the Epson i3200 E1 printhead, offering high precision and density (600npi, 2 rows of nozzles) for fast, high-quality prints. It features an auto capping and wiping system, an intelligent IR drying system, and a high-precision silent linear rail. The printer uses IGUS (Germany) super carrier chain and cables, providing superior precision with low noise for efficient, reliable operation.
Natural 600 npi
| Model | BRUNO PLUS 1601 | BRUNO PLUS 1602 | BRUNO PLUS 1604 | BRUNO PLUS 1802 |
|---|---|---|---|---|
| Print Head | 1 × Epson i3200 E1 | 2 × Epson i3200 E1 | 4 × Epson i3200 E1 | 2 × Epson i3200 E1 |
| Technology | Drop-on-demand Piezo with Variable Dot | |||
| Ink | Eco-Solvent Ink | |||
| Color | CMYK | |||
| Ink Supply System | Bulk Ink Supply System with Ink Cartridges | |||
| Ink Tank | 1500 ml | |||
| Printing Width | Max. 1600 mm | Max. 1600 mm | Max. 1600 mm | Max. 1800 mm |
| Media Type | Banner, Coated PP, Vinyl, PVC Film | |||
| Roll Diameter | Max. 300 mm | |||
| Roll Weight | Max. 50 kgs | |||
| Core Diameter | 3 in (76.2 mm) or 2 in (50.8 mm) | |||
| Data Interface | Ethernet (Speed 1 Gbps) | |||
| Working Environment | Temp 23°C–29°C, Humidity: 50%–80% | |||
| Software | PhotoPRINT / Onyx | |||
| Power | Single Phase, 50Hz AC, 220V ±10% | |||
| Dimensions (L × B × H) | 3050 × 1451 × 960 mm | 2950 × 946 × 1477 mm | 2950 × 946 × 1477 mm | 3280 × 946 × 1477 mm |
| Weight | 350 kg | 500 kg | 500 kg | 515 kg |
