The UNO Series is a versatile eco-solvent printer built for precision and speed. Equipped with high-quality Epson i3200 heads, it delivers sharp, vibrant prints on various media types.
Model : UNO 1601 / 1602 / 1802
Print Heads : One Epson I3200 U1 / Two Epson I3200 U1
Technology : Drop-on-demand Piezo with Variable Dot
The UNO Series is a versatile eco-solvent printer built for precision and speed. Equipped with high-quality Epson i3200 heads, it delivers sharp, vibrant prints on various media types. Its pre-, mid-, and post-heating system ensures consistent drying, while the adjustable pinch rollers and media tension control guarantee stable feeding. Ideal for signage, vinyl, film, and banners, the UNO series offers reliable performance with cost-efficient operation.

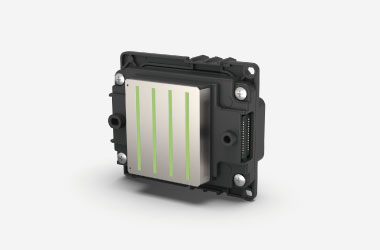

Epson I3200-U1 is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600 dpi high-density resolution.This printhead is suitable for UV inks.
Anti Collision unit – Detects and avoids objects that could contact print head (e.g., breakage, damaged edge, folded corner).
The take up system has forward and reverse wind capability and offers adjustable roll widths, making it suitable for different sized media rolls and applications.
| Model | UNO 1601 | UNO 1602 | UNO 1802 | |||||||||||||||
| Print Head | One Epson I3200 U1 | Two Epson I3200 U1 | Two Epson I3200 U1 | |||||||||||||||
| Printing Speed |
|
|||||||||||||||||
| Technology | Drop-on-demand Piezo with Variable Dot | |||||||||||||||||
| Ink | UV Ink | |||||||||||||||||
| Color | CMYK / CMYK+W | |||||||||||||||||
| Ink Supply System | Bulk Ink Supply System With Ink Cartridges | |||||||||||||||||
| Ink Tank | 500 ml | |||||||||||||||||
| Printing Width | Max. 1600mm | Max. 1600mm | Max. 1800mm | |||||||||||||||
| Media Type | Banner, Coated PP, Vinyl, PVC Film, Backlit,PET Film.. | |||||||||||||||||
| Roll Diameter | Max. 300mm | |||||||||||||||||
| Roll Weight | Max. 50kgs | |||||||||||||||||
| Core Diameter | 3 in (76.2mm) or 2 in (50.8mm) | |||||||||||||||||
| Data Interface | Ethernet (Speed 1GBPS) | |||||||||||||||||
| Working Environment | Temp.23℃~29℃, Humidity:50%~80% | |||||||||||||||||
| Software | PhotoPRINT | |||||||||||||||||
| Power | Single Phase 50Hz/AC,220V+10% | |||||||||||||||||
| Dimensions (LxBxH) | 3050 x 1451 x 960 mm | 3050 x 1451 x 960 mm | 3250 x 1451 x 960 mm | |||||||||||||||
| Weight | 421kg | 421kg | 500kg | |||||||||||||||
