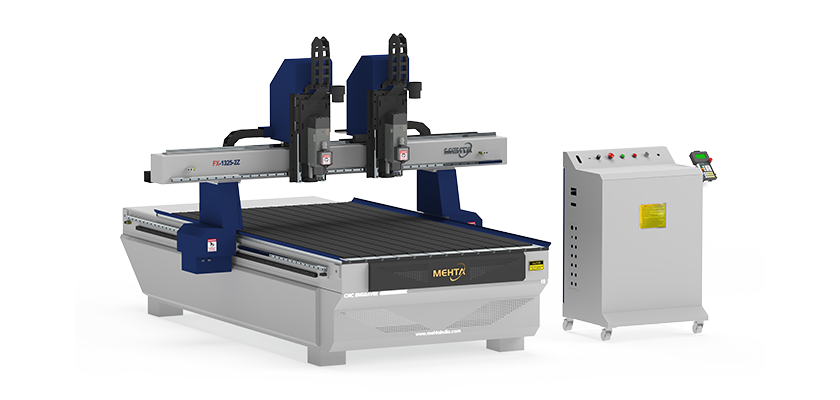

The FX 1325 – 2Z is a high-speed CNC engraving and router machine engineered for precision 2D and 3D applications.
Model : FX-II-1325 2Z
Spindle : 6 KW Air Cooled Spindle (2 Nos.)
Operating System : New Advance Hand Held Controller
The FX 1325 – 2Z is a high-speed CNC engraving and router machine engineered for precision 2D and 3D applications. Powered by an AC servo motor and gearbox, it delivers exceptional stability for heavy workloads. Key features include an Italian spindle for maintenance-free performance and 25mm linear guideways for superior accuracy. With a helical-rack transmission and a semi-automatic lubrication system, this machine ensures long-term reliability and efficiency, making it the ideal powerhouse for professional industrial workshops.
X, Y and Z axis are driven by AC SERVO motor which gives more accuracy and speed than stepper motor machine.
Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time.
Fast speed and high accuracy ensured by gear transmission equipped on CNC router.
Periodic lubrication maintenance provided by Automatic lubrication system which gives long life to mechanical parts.
If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn’t get damaged.
Axis Drive System : X, Y – Rack. Z – Ball Screw.
Working table is covered with rigid PVC sheet for long life of aluminum T slot table.
| Model | FX 1325-2Z | FX 1530-2Z |
|---|---|---|
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm | 1530 x 3050 x 200 mm |
| Spindle | 6 KW Air Cooled Spindle (2 Nos.) | |
| Spindle Speed | 18000 RPM | |
| Distance Between Bed & Gantry | 200 mm | |
| Maximum Traveling Speed | 30 mtr/min | |
| Cutting Tool Diameter | Ø3 to Ø16 mm | |
| Transmission | X, Y Axis – Helical Rack and Pinion with Gear Box, Z Axis – Ball Screw | |
| Operating System | New Advance Hand Held Controller | |
| Driving System | AC Servo Motor | |
| Power Supply | AC 420V / 3PH | |
| Weight (approx.) | 970 Kg. | |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
