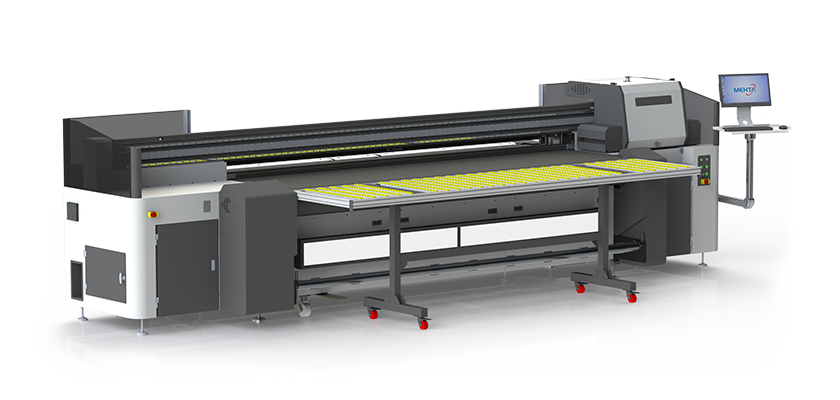

The JAGUAR 3.2 is a high-speed UV Hybrid Inkjet Printer designed for flawless precision on both rigid and flexible media.
Model : JAGUAR 3.2
Print Heads : 3 EPSON T3200 U3 Print Heads (Standard) Up to 8 Print Heads (optional)
Technology : Piezoelectric on-demand inkjet technology with grayscale capability.
The JAGUAR 3.2 is a high-speed UV Hybrid Inkjet Printer designed for flawless precision on both rigid and flexible media. Equipped with elite printheads like Kyocera or Epson T3200, it delivers stunning high-resolution output using eco-friendly, odorless UV inks. Its advanced conveyor belt system and UV-LED technology enable exquisite four-layer printing and non-overlapping double-sided ads. Perfectly balancing speed with sharp detail, the JAGUAR 3.2 offers a versatile, reliable, and sustainable printing solution for professional signage and display industries.
EPSON I32001 U1 HIGH SPEED PRINT HEAD
INTELLIGENT NAGATIVE PRESSURE SYSTEM
HIGH PRECISION SILENT LINEAR RAIL
IGUS (GERMANY) BRAND SUPER CARRIER CHAIN & CABLE SUPER PRICISION WITH LOW NOISE.
The Epson i3200 U1 is a cost effective.1.33inch wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This Print Head is suitable for UV inks.
Anti-collision Unit-Detects and avoids objects that could contact print head(e.g. breakage,damaged edge,folded corner).
Variable Dot Technology for smoother gradations is a functionality is a print head that enables the creation of ink drops of different sizes onto the media ,delivering smooth gradations and higher image quality.
Rotary Options enables printing on various cylindrical objects with 400mm length and diameter from 30mm to 150mm. This allows users to create more varied print applications.
| Model | JAGUAR 3.2 | ||||||||||||
| Printing Technology | Piezoelectric on-demand inkjet technology with grayscale capability | ||||||||||||
| No. of Printheads | 3 EPSON T3200 U3 Print Heads (Standard) Up to 8 Print Heads (optional) | ||||||||||||
| Media size Roll ro Roll | 3200mm | ||||||||||||
| Printing Resolution | Up to 1800 dpi | ||||||||||||
| Media Thickness | 50mm | ||||||||||||
| Ink type | UV LED curable Ink | ||||||||||||
| Ink capacity | 3 Litre bottle | ||||||||||||
| Colour | Cyan, Magenta, yellow, Black, White | ||||||||||||
| Configuration | (1) CMYK + White, (2) White + CMYK, (3) CMYK + White + CMYK | ||||||||||||
| Ink curing Unit | Dual LED Lamps | ||||||||||||
| Software | Onyx RIP center | ||||||||||||
| Interface | Highspeed USB 3.0 | ||||||||||||
| Power Supply | 100-110V AC / 220-240V AC, 50/60Hz | ||||||||||||
| Power Consumption | Maximum 6.7 kVA | ||||||||||||
| Dimension | L 6207 x W 2051 x H 1630 | ||||||||||||
| Weight | 3400KG | ||||||||||||
| Working Envirnoment | (Power on) Temperature: 21°C to 30°C (69° to 86°F)/ Humidity: 35 to 80% ;(Power off) Temperature: 5°C to 40°C (41° to 104°F)/ Humidity: 20 to 80% | ||||||||||||
| Printing Speed |
|
*Specification are liable to change without prior notice.
