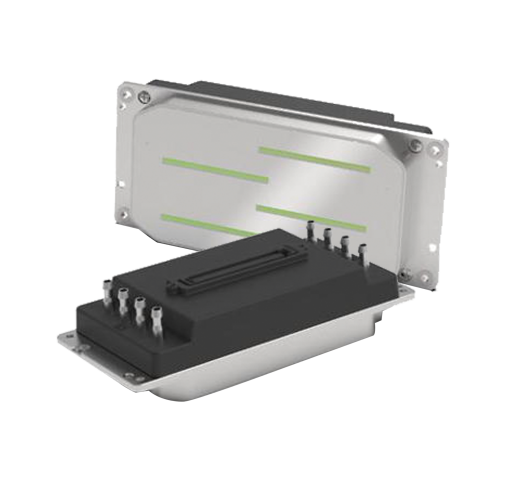

The Prinzo Eco Solvent Inkjet Printer features the ESPON T3200 U3 (5PL) printhead for precise dot placement.
Model : Prinzo
Print Heads : 2 x EPSON T3200 Print Head / 4x EPSON T3200 Print Head
Technology : Drop On Demand Peizo Inkjet Technology

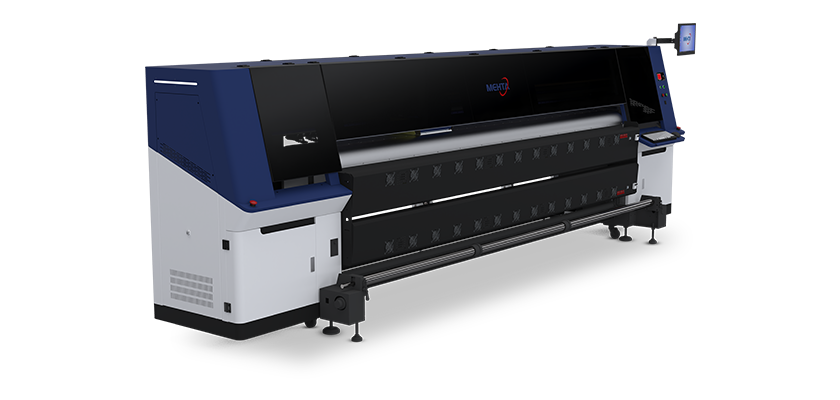

The Prinzo Eco Solvent Inkjet Printer features the ESPON T3200 U3 (5PL) printhead for precise dot placement. Its manually adjustable platform ensures a flatbed printing area, while the multi-heating and drying system utilizes IR and fan heating for efficient curing. The printer’s high-strength steel frame and precision linear rail provide durability and reduced noise. With automatic negative pressure adjustment and an individual cleaning system, it ensures stable pressure, low maintenance, and minimal waste. Supports up to four staggered printheads.
High Torque yet Low Vibration: Stable and Accurate Printing.
CNC Aluminium Beam support with Dual Linear Guides for High Speed printing.
High density, Sturdy print head with grayscale technology.
Powerful IR Heater with Enabling High Speed Printing Capability.
Super Precision with Low Friction Noise
Anti Collision System to Protect Print Head during High Speed Printing.
Provides easy-to-use tools to achieve high-quality, consistent, color-managed output for your printing
| Specification | PRINZO 3202T | PRINZO 3204T | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Print Head | 2× EPSON T3200 | 4× EPSON T3200 | ||||||||||||||||||||||||
| Speed |
|
|
||||||||||||||||||||||||
| Technology | Drop On Demand Piezo Inkjet Technology | |||||||||||||||||||||||||
| Ink | C.M.Y.K Solvent / Eco Solvent | |||||||||||||||||||||||||
| Ink Supply System | Auto Consistent Ink Supply With Negative Air Pressure System | |||||||||||||||||||||||||
| Feeding System | Automatic Media Feeding and Taking Up with Infrared Sensor | |||||||||||||||||||||||||
| Drying System | Pre, Mid, Post Heater + IR Drying System | |||||||||||||||||||||||||
| Printing Width | Max. 3200 mm | |||||||||||||||||||||||||
| Media Type | Paper, PVC, Banner, Frontlit, Vinyl, Backlit, Film | |||||||||||||||||||||||||
| RIP Software | ONYX RIP Center / RIIN RIP | |||||||||||||||||||||||||
| Image Format | PDF, .JPEG., .TIFF | |||||||||||||||||||||||||
| Data Interface | USB 3.0+ | Ethernet | |||||||||||||||||||||||||
| Power | Single Phase 50Hz / AC 220V ±10%, 10A (Printer) + 32A (IR Drying System) | |||||||||||||||||||||||||
| Working Environment | Temp 23°C–29°C | Humidity: 50%–80% | |||||||||||||||||||||||||
| Dimension (L×W×H) | LxWxH5446 × 1194 × 1565 mm | |||||||||||||||||||||||||
| N.W. / G.W. | 1150 kgs | |||||||||||||||||||||||||
