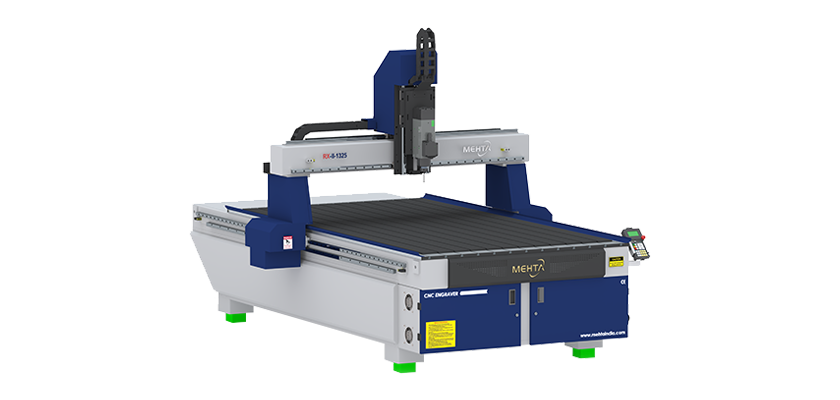

The RX-II 1325 is a professional-grade CNC engraving and router machine built for precision 2D and 3D fabrication.
Model : RX-II 1325
Spindle : 6 KW Air Cooled , Italian Spindle
Operating System : DSP- Hand Held Controller
The RX-II 1325 is a professional-grade CNC engraving and router machine built for precision 2D and 3D fabrication. Equipped with a high-torque servo motor and 25mm linear guideways, it ensures exceptional positional accuracy and long-term durability. The original Italian spindle provides a stable, maintenance-free experience, while the helical-rack and pinion system enables rapid, smooth motion. Featuring a semi-automatic lubrication system and a rigid PVC-covered T-slot table, the RX-II Series is the ultimate tool for high-accuracy industrial workloads.
| Model | RX - II 1325 | RX - II 1530 |
|---|---|---|
| Working Area (X, Y, Z) | 2150 x 3300 x 1700 mm | 2450 x 3900 x 1700 mm |
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm | 1530 x 3050 x 200 mm |
| Spindle | 6 KW Air Cooled Spindle (2 Nos.) | |
| Spindle Speed | 18000 RPM | |
| Distance Between Bed & Gantry | 200 mm | |
| Maximum Traveling Speed | 30 mtr/min | |
| Cutting Tool Diameter | Ø3 to Ø16 mm | |
| Transmission | X, Y Axis – Helical Rack and Pinion with Gear Box, Z Axis – Ball Screw | |
| Operating System | DSP-Hand Held Controller | |
| Driving System | AC Servo Motor | |
| Power Supply | AC 420V / 3PH | |
| Weight (approx.) | 970 Kg. | 1200 Kg. |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
