The FX-1325V-ATC Series CNC routers are versatile machines designed for a wide range of cutting and engraving needs.
Model : FX-1325V-ATC
Spindle : 6 KW Air Cooled
Operating System : New Advance Hand Held Controller

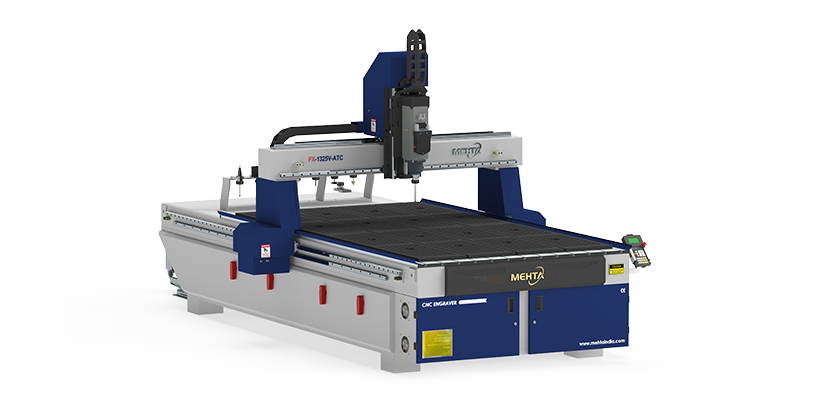

The FX 1325V ATC is a high-performance CNC engraving and router machine designed for precision 2D and 3D tasks. Featuring an advanced AC servo motor and gearbox, it balances high-speed operation with cost-effective stability. The machine boasts an original Italian spindle and 25mm linear guideways for maintenance-free longevity and exceptional accuracy. With its helical-rack transmission and semi-automatic lubrication, the FX 1325V ATC offers a reliable, heavy-duty solution for workshops seeking professional results without compromising on efficiency.
| Model | FX 1325V-ATC | FX 1530V-ATC |
|---|---|---|
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm | 1530 x 3050 x 200 mm |
| Spindle | 6 KW Air Cooled ATC Spindle | |
| Spindle Speed | 18000 RPM | |
| ATC System | 8 Tools Linear type changer | |
| Distance Between Bed & Gantry | 200 mm | |
| Maximum Traveling Speed | 30 mtr/min | |
| Working Table | High pressure Vacuum table with Regenerative Blower | |
| Cutting Tool Diameter | Ø3 to Ø16 mm | |
| Transmission | X, Y Axis – Helical Rack and Pinion with Gear Box, Z Axis – Ball Screw | |
| Operating System | New Advance Hand Held Controller | |
| Driving System | AC Servo Motor | |
| Power Supply | AC 420V / 3PH | |
| Weight (approx.) | 1000 kg. | 1500 kg. |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
