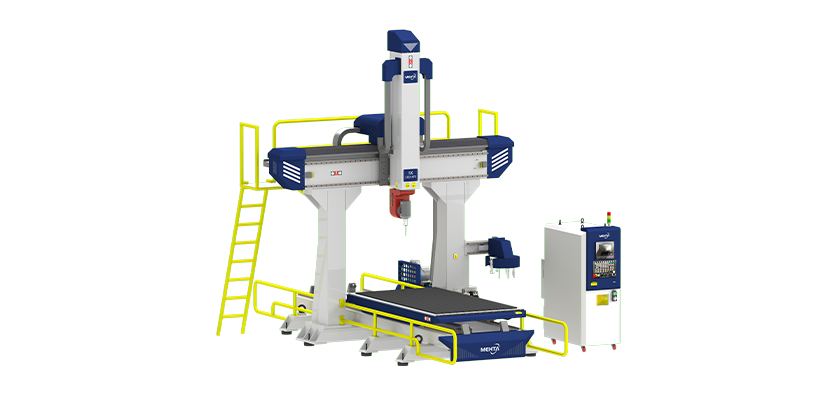

The 5-Axis-ATC is a high-performance solution designed for precision machining of complex components.
Model : 5x-1325 ATC
Spindle Speed : 24000 rpm/min
Our 5-axis CNC machining center is built for precision and complex machining applications. Its strong cast iron structure ensures high stability, reduced vibration, and reliable performance during continuous operations.
With advanced 5-axis movement (X, Y, Z plus rotary axes), the machine can handle multi-angle machining in a single setup, saving time, reducing manual work, and improving accuracy.
Equipped with a high-speed spindle and a 12-tool automatic tool changer, it delivers smooth cutting, superior finish, and faster production. The high-precision ball screw system ensures consistent and accurate results.
Ideal for industries like automotive, aerospace, tool & die, and general engineering where precision and productivity are critical.
| Stroke Size (mm) | X: 6500 × Y: 3500 × Z: 2500 |
| 5 Axis Working Size (mm) | X: 5500 × Y: 2500 × Z: 2100 |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000 rpm |
| Spindle Cone | HSK 63F |
| Drive Type | XYZ all adopt high precision ball screws |
| A Axis | ±120° |
| C Axis | ±360° |
| Work Model | AC Servo Drive |
| Max Working Speed (m/min) | 40 / 40 / 10 |
| Max Rapid Speed (m/min) | 60 / 60 / 20 |
| Work Table Type | Cast Iron Table with T Slot |
| Positioning Accuracy (mm/m) | 0.025 / 0.025 / 0.025 |
| Repeatability (mm/m) | 0.01 / 0.01 / 0.01 |
| Air Pressure (kgf/cm²) | 0.6 ~ 0.7 |
| Total Power (KVA) | 57 |
| Gross Weight (T) | 38 |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
