Features
➔Heavy duty frame structure.
➔X, Y and Z axis are driven by AC SERVO motor (JAPAN) which gives more accuracy and speed than our LX Series and RX Series CNC Routers.
➔High positional accuracy, heavy work load and long life is ensured by HIWIN brand 30 mm square linear guideways.
➔Original Italian spindle gives you very stable, trouble-free, maintenance-free, performance for long period of time.
➔Fast speed and high accuracy ensured by gear transmission equipped on CNC Router.
➔Periodic lubrication maintenance provided by lubrication system which gives long life to mechanical parts.
➔If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn’t get damaged.
➔Axis drive system: X, Y – Rack. Z – Ball Screw.
➔Working table is covered with rigid PVC sheet for long life of aluminum T slot table.
➔X, Y and Z axis are driven by AC SERVO motor (JAPAN) which gives more accuracy and speed than our LX Series and RX Series CNC Routers.
➔High positional accuracy, heavy work load and long life is ensured by HIWIN brand 30 mm square linear guideways.
➔Original Italian spindle gives you very stable, trouble-free, maintenance-free, performance for long period of time.
➔Fast speed and high accuracy ensured by gear transmission equipped on CNC Router.
➔Periodic lubrication maintenance provided by lubrication system which gives long life to mechanical parts.
➔If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn’t get damaged.
➔Axis drive system: X, Y – Rack. Z – Ball Screw.
➔Working table is covered with rigid PVC sheet for long life of aluminum T slot table.

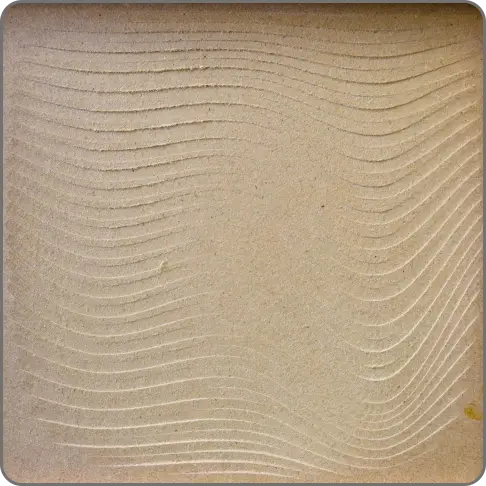

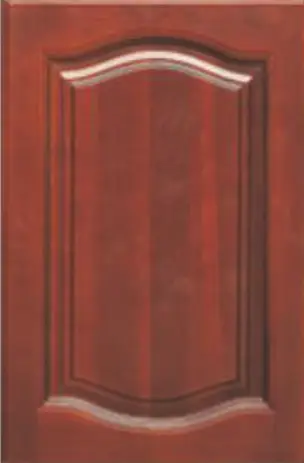

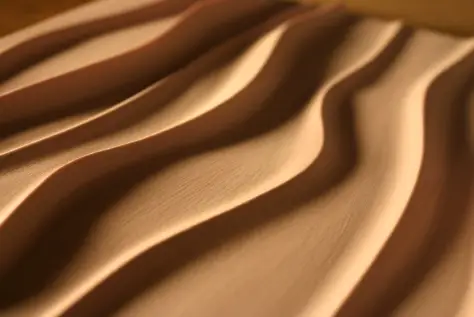

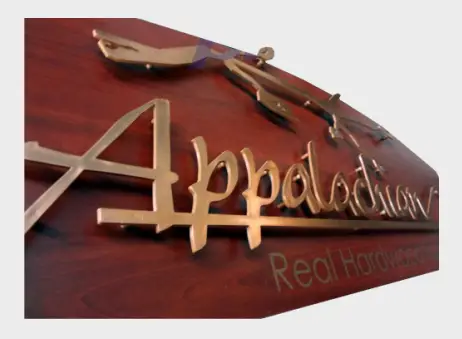

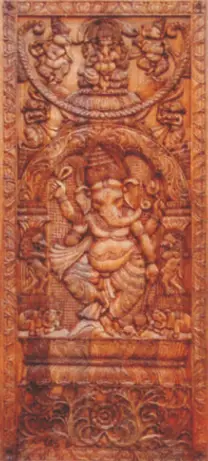

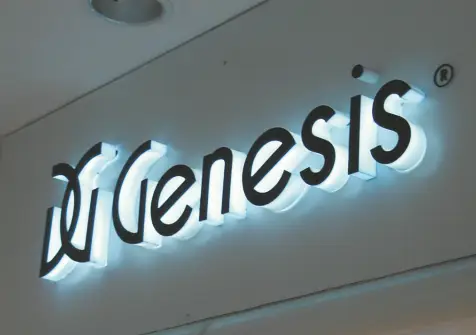

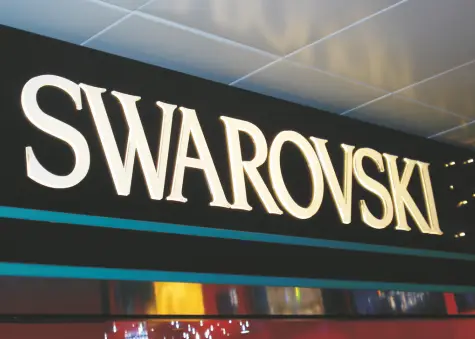

Applications
|
|
|
|
|
|
|
|
|
Technical Specification
| Model | GX-1325 | GX-1530 | ||
| Outer Dimension | 2190 x 3180 x 1800 mm | 2390 x 3680 x 1800 mm | ||
| Working Area (X, Y, Z) | 1300 x 2500 x 300 mm | 1500 x 3000 x 300 mm | ||
| Spindle | 6 KW Air Cooled, (HSD Italian) | 6 KW Air Cooled, (HSD Italian) | ||
| Spindle Speed | 18000 RPM | 18000 RPM | ||
| Maximum Traveling Speed | 30 mtr/min | 30 mtr/min | ||
| Cutting Tool Diameter | Ø3 to Ø16 mm | Ø3 to Ø16 mm | ||
| X and Y Axis Traveling | Rack & Pinion (Made In Taiwan) | Rack & Pinion (Made In Taiwan) | ||
| Table Structure | Heavy Duty Rigid Mild Steel Frame Structure | Heavy Duty Rigid Mild Steel Frame Structure | ||
| Operating System | High Speed NK 260 Integrated System | High Speed NK 260 Integrated System | ||
| Driving System | AC Servo Motor (Japan) | AC Servo Motor (Japan) | ||
| Weight | 1400 Kg. | 1600 Kg. | ||
| Specification are liable to change without prior notice. | ||||
Optional
 |
Vacuum Bed System |  |
Multi Spindle Router |
 |
German Becker pump |  |
Dust Collector |
 |
Other Cnc Router LX series |  |
Ring Type Blower |
