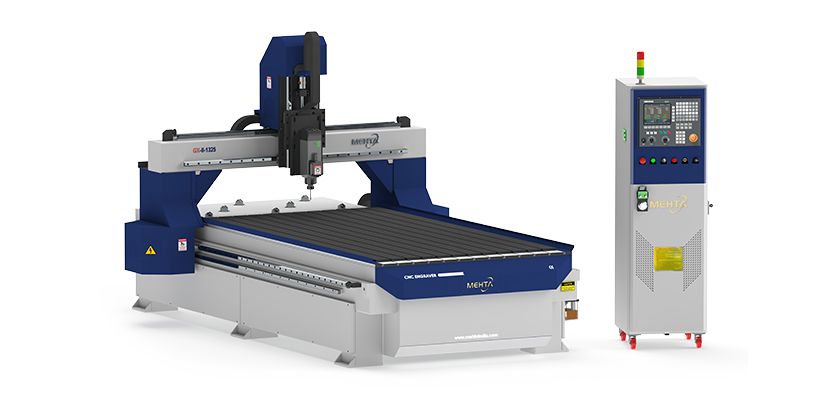

The GX-II 1325-V-ATC Series CNC routers are versatile machines designed for a wide range of cutting and engraving needs.
Model : GX – II 1325 -V-ATC
Spindle : 8.5 kw Air cooled Italian Spindle
The GX 1325 is a heavy-duty CNC router designed for high-performance 2D and 3D applications. Engineered with AC servo motors across all axes, it delivers superior speed and accuracy compared to standard models. Featuring robust 30mm square linear guideways and an original Italian spindle, it handles heavy workloads with maintenance-free stability. Its advanced Auto Stop Mode protects materials from damage during operation, while the gear transmission ensures rapid processing, making it a reliable powerhouse for industrial-grade fabrication.
| Model | GX-II-1325V ATC | GX-II-1530V ATC |
|---|---|---|
| Outer Dimension of Machine | 2865 x 2560 x 3683 | 3065 x 3660 x 3683 |
| Working Area (X, Y, Z) | 1300 x 2500 x 300 mm | 1530 x 3050 x 300 mm |
| Spindle | 8.5 KW Air Cooled Italian Spindle | |
| Spindle Speed | 24000 RPM | |
| Maximum Traveling Speed | 45 mtr/min | |
| Transmission | X, Y Axis - Helical Rack and Pinion with Gear Box, Z Axis - Ball Screw | |
| 3 Axis Control Motor | 1 KW, AC Servo Motor, Japan | |
| Collect | ER32, Max 16mm Dia Tool | |
| Controller | High Speed NK280 Integrated System (Advance Controller) | |
| Automatic Tool Changer | BT30 ISO30, 8 POSITIONS | |
| Material Holding | Vacuum Combined T-slot | |
| Power Supply | AC 440V / 3PH | |
| Weight | 2000 Kg. | 2500 Kg. |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
