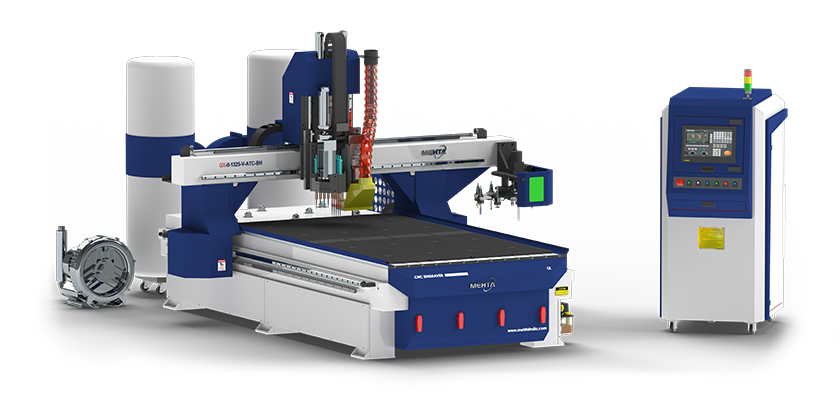

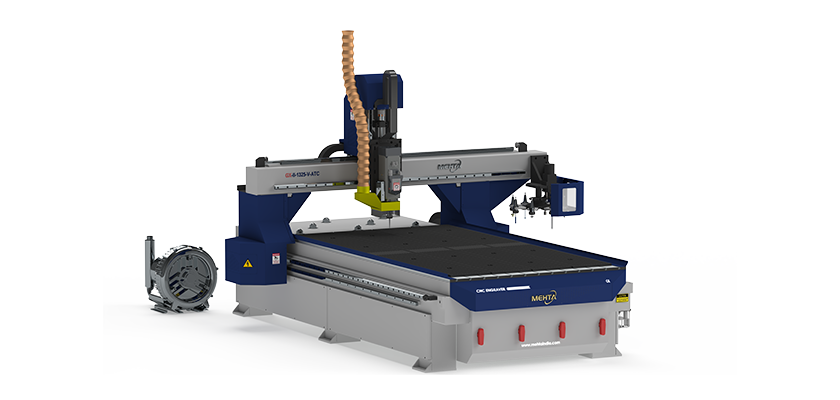

The GX-II 1325-V-ATC Series CNC routers are versatile machines designed for a wide range of cutting and engraving needs.
Model : GX – II 1325 -V-ATC
Spindle : 8.5 kw Air cooled Italian Spindle
The GX-II 1325-V-ATC Series is a top-tier CNC engraving and router machine built for demanding 2D and 3D applications. Featuring Japanese AC servo motors and gears, it outpaces competitors in both speed and precision. The inclusion of 30mm HIWIN square linear guideways ensures stability under heavy workloads, while the original Italian spindle provides elite, maintenance-free performance. Equipped with a smart Auto Stop Mode and a dedicated lubrication system, this series offers unmatched reliability for high-volume industrial production.
| Model | GX-II-1325V ATC | GX-II-1530V ATC |
|---|---|---|
| Outer Dimension of Machine | 2865 x 2560 x 3683 | 3065 x 3660 x 3683 |
| Working Area (X, Y, Z) | 1300 x 2500 x 300 mm | 1530 x 3050 x 300 mm |
| Spindle | 8.5 KW Air Cooled Italian Spindle | |
| Spindle Speed | 24000 RPM | |
| Maximum Traveling Speed | 45 mtr/min | |
| Transmission | X, Y Axis - Helical Rack and Pinion with Gear Box, Z Axis - Ball Screw | |
| 3 Axis Control Motor | 1 KW, AC Servo Motor, Japan | |
| Collect | ER32, Max 16mm Dia Tool | |
| Controller | High Speed NK280 Integrated System (Advance Controller) | |
| Automatic Tool Changer | BT30 ISO30, 8 POSITIONS | |
| Material Holding | Vacuum Combined T-slot | |
| Power Supply | AC 440V / 3PH | |
| Weight | 2000 Kg. | 2500 Kg. |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
