The EQ Series CNC routers are versatile machines designed for a wide range of cutting and engraving needs.
Model : RX-II-1325
Spindle : 6 KW Air Cooled
Operating System : DSP-Hand Held Controller

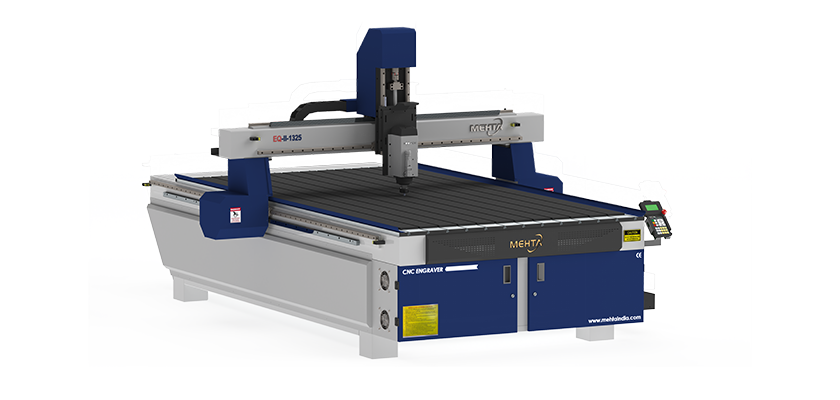

The EQ 1325 CNC Engraving & Router Machine (2D/3D) is designed for reliable and precise machining applications. It features 20 mm linear guideways that support accurate positioning and smooth motion during operation. The spindle is built to provide stable, low-maintenance performance over extended use. Helical rack and pinion transmission on the X and Y axes enables efficient movement, while the Z-axis ball screw supports vertical accuracy. Imported square rails and a semi-automatic lubrication system assist in handling regular workloads. The aluminum T-slot table is protected with a rigid PVC sheet for durability.
X, Y and Z axis are driven by AC SERVO motor which gives more accuracy and speed than stepper motor machine.
Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time.
Fast speed and high accuracy ensured by gear transmission equipped on CNC router.
Periodic lubrication maintenance provided by Automatic lubrication system which gives long life to mechanical parts.
If any electronic part get damaged during running operation, Auto Stop Mode Function stops the machine and so the tool or material doesn’t get damaged.
Axis Drive System : X, Y – Rack. Z – Ball Screw.
Working table is covered with rigid PVC sheet for long life of aluminum T slot table.
| Model | EQ-1325 |
|---|---|
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm |
| Spindle | 6 KW Air Cooled Spindle |
| Spindle Speed | 18000 RPM |
| Distance Between Bed & Gantry | 200 mm |
| Maximum Travelling Speed | 25 mtr/min |
| Cutting Tool Diameter | 03 to 16 mm |
| Transmission | X, Y Axis - Helical Rack and Pinion with Gear Box, Z Axis - Ball Screw |
| Operating System | New Advance Hand Held Controller |
| Driving System | Closed Loop Motor |
| Power Supply | AC 420V / 3PH |
| Weight (approx.) | 700 Kg. |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
