The EVAN Series fiber laser marking machines provide high-speed, precise marking on metals and alloys.
Model : Evan-20 / Evan-30 / Evan-50 / Evan-100
Wavelength : 1064 nm
Cooling : Air Cooled

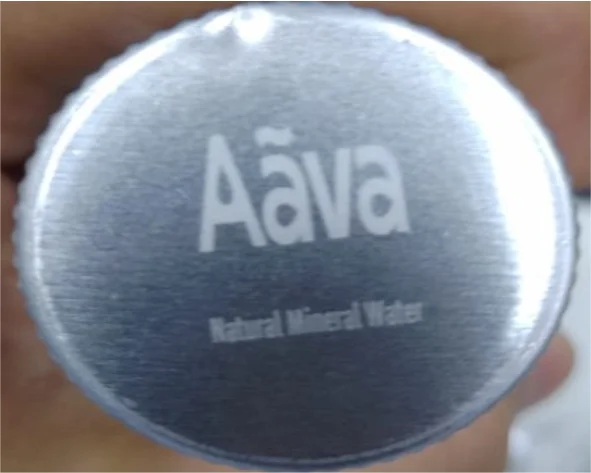

Marking on all metal products

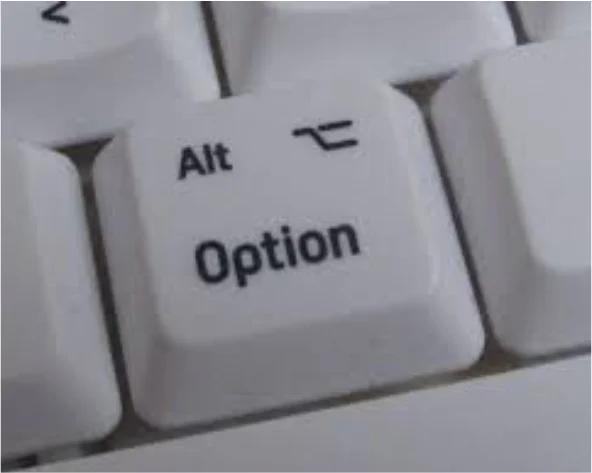

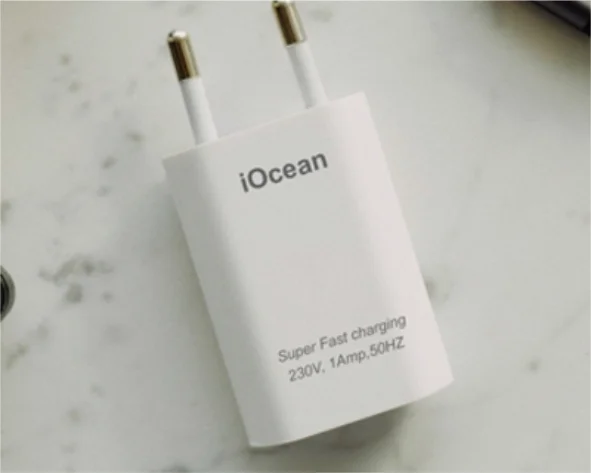

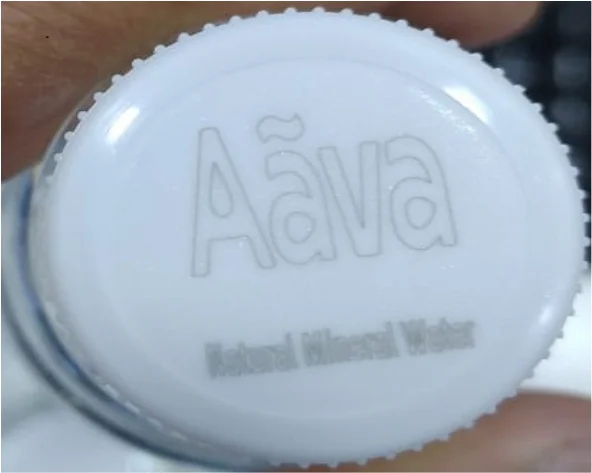

Marking on some non metals like PVC, Paper ABS, etc…

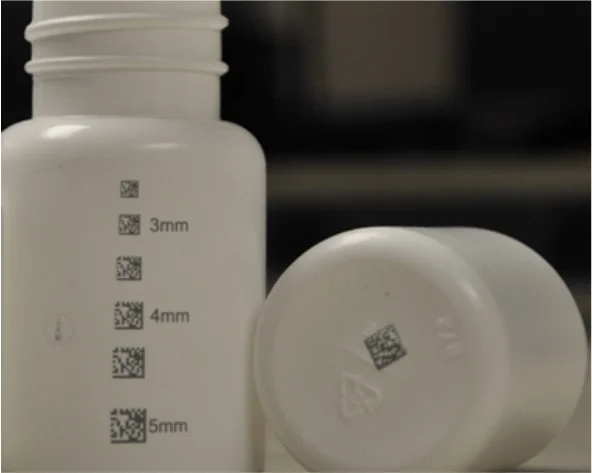

Bar code / Data Matrix Marking

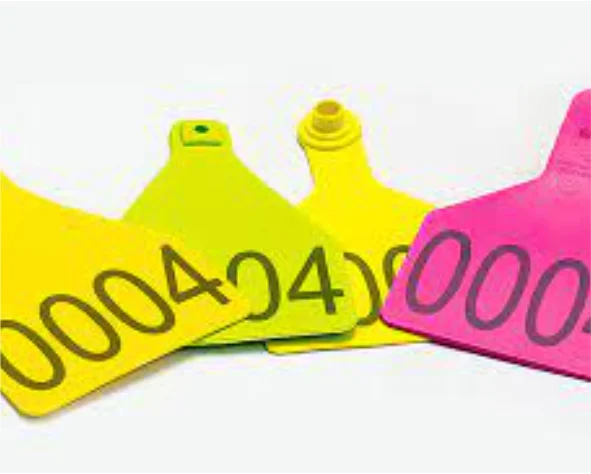

Serial Number Marking
Bitmap (Graphics) marking
High quality gray scale marking.
Jewellery Metal Cutting
Long using time : the average using time more than 100000 hours.
Good stability and free maintenance: No need to do maintenance for laser device.
Stable performance, small size, low power consumption.
The operating system is flexible and convenient.
Excellent beam quality, high stability output easy to debug the marking effect.
High speed marking (MHz repetition rate).
First and last pulse equally useable.
High repeatability/stability design.
Status monitoring and safe shut down.
High electro-optical conversion efficiency, long useful period.
| Model | Evan-20 | Evan-30 | Evan-50 | Evan-100 |
| Output Power | 20 W | 30 W | 50 W | 100 W |
| Wavelength | 1064 nm | |||
| Power Adjustment | 0 to 100 % | |||
| Cooling | Air Cooled | |||
| Min. Line Width | Min. 0.03 mm (Depend on Material) | |||
| Max. Speed | Max. 10000 mm/s (Max. Linear Speed) | |||
| Marking Depth | 0.01~0.3mm (Depends on Material) | |||
| Min Character Height | 0.5 mm | |||
| Marking Range | 145 mm X 145 mm (Standard) Optional : 70 x 70 mm, 175 X 175 mm, 200 x 200 mm, 270 x 270 mm, 300 X 300 mm | |||
| Supporting Format | Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly | |||
| Single Pulse Energy (mj) | 1.0@20KHz | 1.0@30KHz | 1.0@50KHz | 1.0@100KHz |
| Repetition Frequency Range | 20-60 KHz | 30-60 KHz | 50-100 KHz | 20-200 KHz |
| Output Power Stability | <3% | |||
| Beam Quality(M2) | <1.5 | <1.8 | ||
| Pulse Width(ns) | 90-130 KHz | 90-150 KHz | 50-130 KHz | |
| Max Power Consumption | 200 Watt | 250 Watt | 350 Watt | 500 Watt |
Specifications are liable to change without prior notice.Computer system will not be provided with the machine.Total machine power consumption is 1KW.
