The SM-II 3021 CNC routers are versatile machines designed for a wide range of cutting and engraving needs.

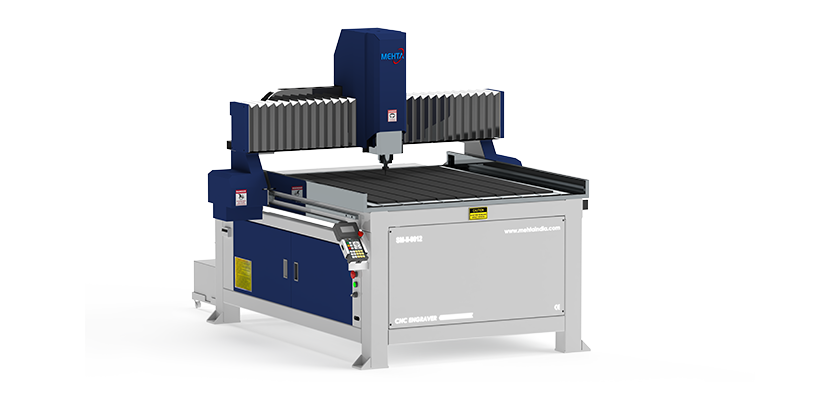

Model: SM-II 9012
The SM-II-3021-2Z Series CNC routers are versatile machines designed for a wide range of cutting and engraving needs.
| Model | SM-II-2513-2Z | SM-II-3021-2Z |
|---|---|---|
| Machining Area | 2500 x 1300 MM | 3000 x 2100 MM |
| Spindle | 7.5 KW (Water Cooled Spindle) | 7.5 KW (Water Cooled Spindle) |
| Spindle RPM | 24000 max | 24000 max |
| Cutting Tool Diameter | Ø3 to Ø16 | Ø3 to Ø16 |
| Z Max. Traveling | 500 mm | 500 mm |
| Distance Between Bed and Gantry | 500 mm | 500 mm |
| Driving System | Closed Loop Motor | Closed Loop Motor |
| Max Running Speed | 25 m/min | 25 m/min |
| Transmission | X, Y Axis - Helical Rack and Pinion with Gear Box, Z Axis - Ball Screw | |
| Controller | New Advance DSP Hand Controller | New Advance DSP Hand Controller |
| Power Supply | AC 420V / 50Hz | AC 420V / 50Hz |
| Weight (Approx) | 1800 kg | 2500 kg |
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
