Model : GLORIA MX 1530 CTC
Cutting Head : Raytools
Weightage : 6.5 ton
High quality rack & pinio , LM guid , gear box
Machine Frame and worktable adoptsintegrated welding made as standard large machine after stress relief annealing, machining on plano miller and then the vibration aging treatment. These sequence of processing of frames makes it high strength, high precision and keep the normal use of 20 years without deformation.
X and Y axis equipped with A.C servo motors and aluminum casted cross beam gives high precision, high speed, big torque, big inertia, performance stability and durabilit y, guarantee the high speed and ac celeration of the whole machine.
Suit for QBH/OD connector.
Enjoy high speed of auto focusing via collimation with servo motor.
Strict dust-proof design with three protection windows.
The same laser can be used to introduce rips, abrasions and other effects, according to the latest fashion.
All optics temperature monitor; air leakage monitor, protection window in place monitor.
Real-time feedbacks of processing states will be uploaded to mobile APP as well as PC, and alarm can be released immediately.
Processing states can be shared on Wechat, QQ, OS-CUTTING.
| Model | GLORIA-MX 1530 CTC |
| Working Area | 5 feet X 10 feet |
| Laser Source | 12 KW to 30 KW |
| Laser Type | IPG / Raycus Fiber Laser Source |
| Laser Wavelength | 1080 nm |
| Cutting Head | Raytools |
| Max. Cutting Speed | 60 m/min |
| Max. Traveling Speed | 140 m/min |
| Position Accuracy | <± 0.04 mm |
| Minimum Line Width | < 0.12 mm |
| Cooling System | Water Cooling |
| Drives & Control | AC Servo Motor |
| Working Voltage | AC 420V |
| Weightage | 6.5 ton |
| Model No. | Working Area | Description |
| Gloria MX-1325 | 1300 x 2500 mm | Laser Cutting machine with 4 ft. x 8 ft. working area |
| Gloria MX-1530 | 1500 x 3000 mm | Laser Cutting machine with 5 ft. x 10 ft. working area |

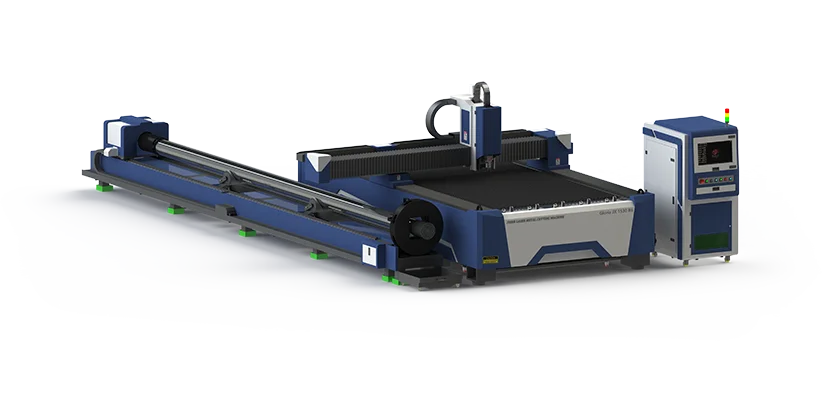

| Gloria MX-1530R-3/6 | 1500 x 3000 mm | Laser Cutting machine with 5 ft. x 10 ft. working area With Rotary Attachment. for 3/6 Mtrs Pipe |
| Gloria MX-1530TC | 1500 x 3000 mm | Laser Cutting machine with 5 ft. x 10 ft. working area With Table Changing Facility |
| Gloria MX-1530CTC | 1500 x 3000 mm | Laser Cutting machine with 5 ft. x 10 ft. working areaWith Table Changing & Close Body Facility |
| Gloria MX-1530TCR | 1500 x 3000 mm | Laser Cutting machine with 5 ft. x 10 ft. working area With Table Changing & Rotary Attachment Facility |
| Gloria MX-2040 | 2000 x 4000 mm | Laser Cutting machine with 6.5 ft. x 13 ft. working area |
