Co2 Laser Marking with VPS Camera Systems

The CO₂ laser marking machine with VPS camera provides exact positioning for non-metal materials like wood, acrylic, leather, and plastics.

Model : Evan-30 C (Camera) / Evan-60 C (Camera)
Cooling : Air Cooled / Water Cooled
Wavelength : 10.64 μm (Optional 10.2 μm / 9.3 μm)

Immediate Contact No.

Building a Reliable
Technical Experience!

Ever since incorporation, we have been making our way through futuristic technology and ground-breaking innovations.

Product

Product Description

The CO₂ laser marking machine with VPS camera provides exact positioning for non-metal materials like wood, acrylic, leather, and plastics. Its advanced camera system ensures high-quality, permanent marks with minimal errors, suitable for packaging, décor, and promotional products.

Technical Specification

Model	Evan-30 C (Camera)	Evan-60 C (Camera)
Output Power	30 W	60 W
Wavelength	10.64 μm (Optional 10.2 μm / 9.3 μm)
Power Adjustment	0 to 100 %
Cooling	Air Cooled / Water Cooled
Min. Line Width	Min. 0.1 mm (Depend on Material)
Max. Speed	Max. 10000 mm/s (Max. Linear Speed)
Marking Depth	0.01~0.3mm (Depends on Material)
Min Character Height	0.4 mm
Marking Range	70 mm X 70 mm (Standard) Optional : 100 x 100 mm.
Supporting Format	Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Repeatability	<20μrad
Output Power Stability	<3%
Max Power Consumption	1 KW

Specifications are liable to change without prior notice.

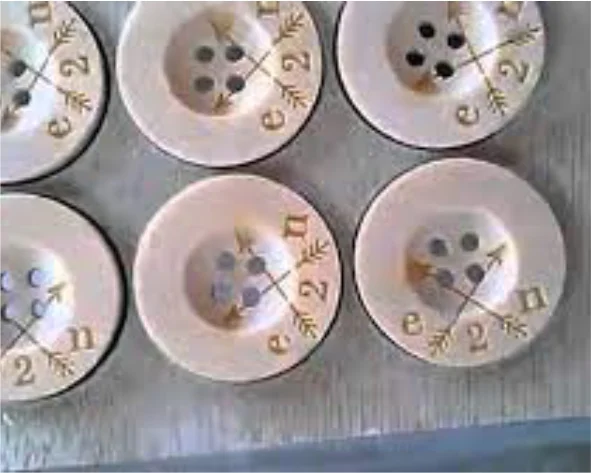

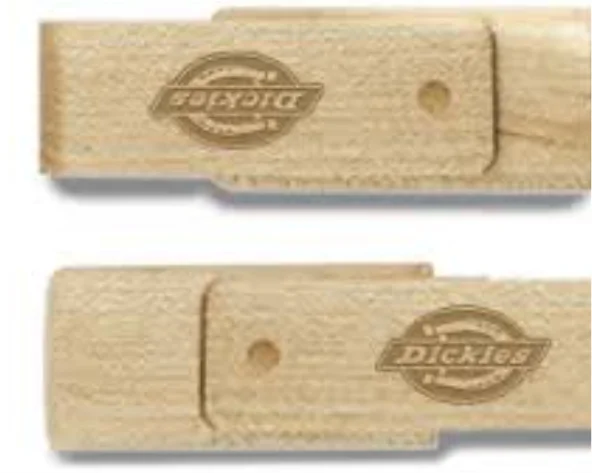

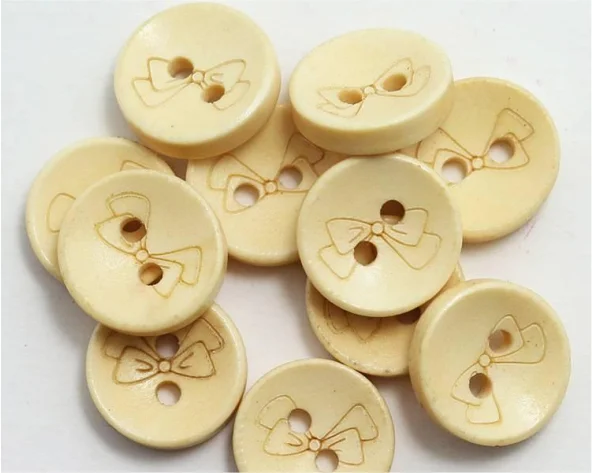

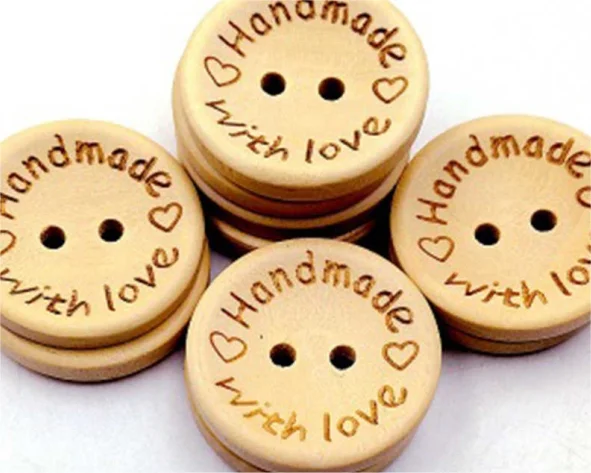

Application Industries

Laser Marking With VPS Camera System
