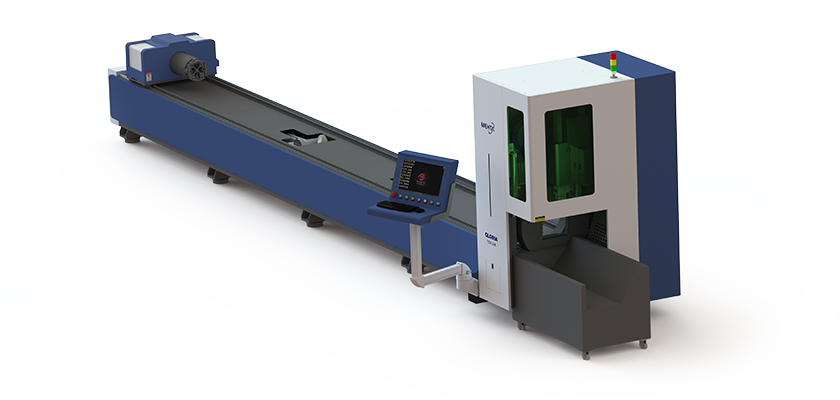

The Gloria TCX is a professional tube laser cutting machine designed for precise and efficient cutting of metal pipes and profiles. With up to 3 kW fiber laser power.
Model : GLORIA-TCX
Cutting Head : Bochu
The Gloria TCX is a next-generation tube laser cutting machine designed to deliver precision, speed, and efficiency in every cut. Engineered for modern fabrication, it processes a wide range of tube and pipe profiles with exceptional accuracy and smooth finishing.
Powered by up to 3 kW fiber laser, the machine ensures high-speed cutting with clean edges and minimal rework. Its dedicated tube cutting design supports round, square, rectangular, and custom profiles, making it highly versatile for various industrial applications.
Equipped with an automatic high-precision chuck system, the TCX provides firm clamping and stable rotation, resulting in consistent and accurate cutting performance.
High quality rack & pinio , LM guid , gear box
Machine Frame and worktable adoptsintegrated welding made as standard large machine after stress relief annealing, machining on plano miller and then the vibration aging treatment. These sequence of processing of frames makes it high strength, high precision and keep the normal use of 20 years without deformation.
Suit for QBH/OD connector.
Enjoy high speed of auto focusing via collimation with servo motor.
Strict dust-proof design with three protection windows.
Separate drawer of focus protection window is convenient for maintenance and replacement.
All optics temperature monitor; air leakage monitor, protection window in place monitor.
Real-time feedbacks of processing states will be uploaded to mobile APP as well as PC, and alarm can be released immediately.
Processing states can be shared on Wechat, QQ, OS-CUTTING.
| Model | GLORIA TCX |
| Tube Length | 3 / 6 Meter |
| Laser Source | Upto 3KW |
| Laser Type | IPG / Raycus |
| Laser Wavelength | 1080 nm |
| Cutting Head | Bochu |
| Position Accuracy | <= 0.04 mm |
| Minimum Line Width | < 0.12 mm |
| Cooling System | Water Cooling |
| Drives & Control | AC Servo Motor |
| Working Voltage | AC 420V |
