Features

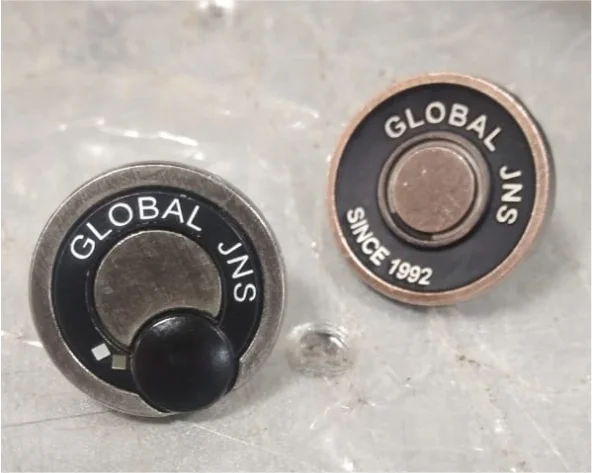

| Marking on all metal & some PVC, ABS buttons |
| Marking on button with higher accuracy when the buttons were placed in random position |
| No need to arrange the buttons in the working area |
| Specify the place where the marking is require on the button with positioning accuracy |
| Long using time : the average using time more than 100000 hours. |
| Good stability and free maintenance: No need to do maintenance for laser device. |
| Stable performance, small size, low power consumption. |
| The operating system is flexible and convenient. |
| High speed marking (MHz repetition rate). |
| First and last pulse equally useable. |
| High repeatability/stability design. |
| Status monitoring and safe shut down. |
| Excellent beam quality, high stability output easy to debug the marking effect. |
| High electro-optical conversion efficiency, long useful period. |

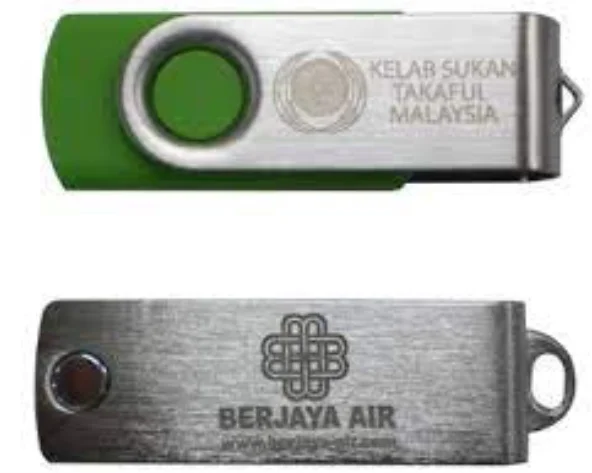

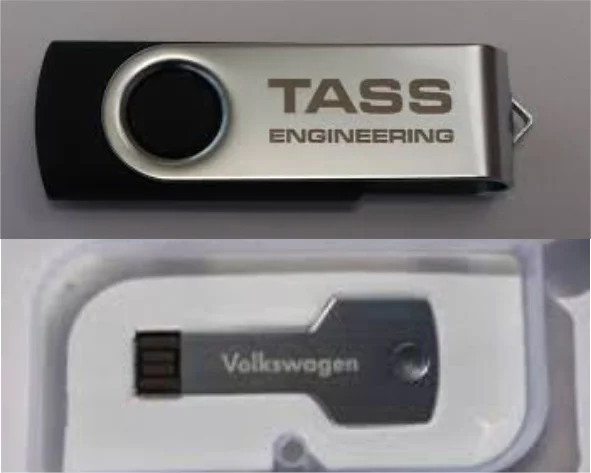

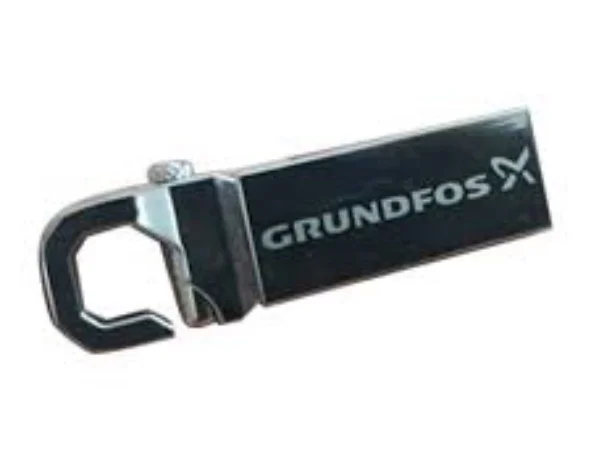

Applications
 |
 |
 |
 |
Technical Specification
| Model | Evan-20 (Camera) | Evan-30 (Camera) | Evan-50 (Camera) |
| Output Power | 20 W | 30 W | 50 W |
| Wavelength | 1064 nm | ||
| Power Adjustment | 0 to 100 % | ||
| Cooling | Air Cooled | ||
| Min. Line Width | Min. 0.03 mm (Depend on Material) | ||
| Max. Speed | Max. 10000 mm/s (Max. Linear Speed) | ||
| Marking Depth | 0.01~0.3mm (Depends on Material) | ||
| Min Character Height | 0.5 mm | ||
| Marking Range | 70 mm X 70 mm (Standard) Optional : 100 x 100 mm. | ||
| Supporting Format | Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly | ||
| Single Pulse Energy (mj) | 1.0@20KHz | 1.0@30KHz | 1.0@50KHz |
| Repetition Frequency Range | 20-60 KHz | 30-60 KHz | 50-100 KHz |
| Output Power Stability | <3% | ||
| Beam Quality(M2) | <1.5 | <1.8 | |
| Max Power Consumption | 1 KW | ||
| Specifications are liable to change without prior notice. | |||
