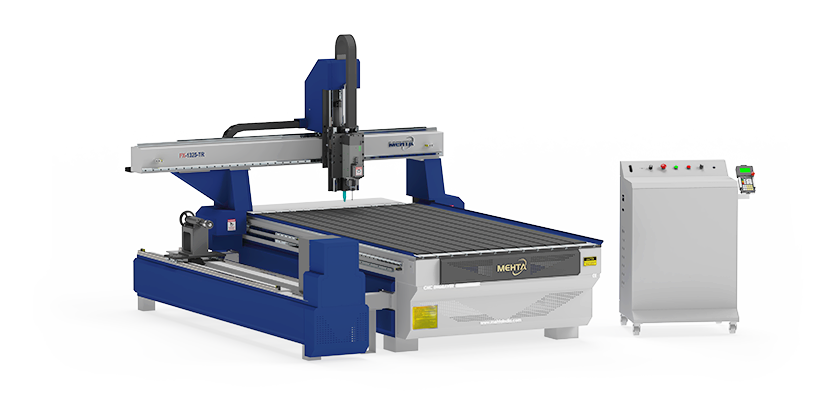

The FX 1325 – TR is a high-speed, cost-effective CNC engraving and router machine designed for precision 2D and 3D projects.
Model : FX-1325 – TR
Spindle : 6 KW Air Cooled Spindle with lath tool attachment
Operating System : New Advance Hand Held Controller
The FX 1325 – TR is a high-speed, cost-effective CNC engraving and router machine designed for precision 2D and 3D projects. Featuring a fixed turning rotary and an original Italian spindle, it ensures stable, maintenance-free performance under heavy workloads. Built with 25mm linear guideways and a helical-rack transmission, this machine delivers exceptional motion accuracy. Its semi-automatic lubrication and rigid PVC-covered T-slot table guarantee long-term durability, making it an ideal, reliable solution for professional manufacturing.
| Model | FX 1325 - TR |
|---|---|
| Working Area (X, Y, Z) | 1300 x 2500 x 300 mm |
| Spindle | 6 KW Air Cooled Spindle With Lath Tool Attachment |
| Spindle Speed | 18000 RPM |
| Distance Between Bed & Gantry | 200 mm |
| Maximum Traveling Speed | 30 mtr/min |
| Cutting Tool Diameter | 03 to 16 mm |
| Transmission | X, Y Axis - Helical Rack and Pinion with Gear Box, Z Axis - Ball Screw |
| Operating System | New Advance Hand Held Controller |
| Driving System | AC Servo Motor |
| Rotary System | For Turning & Engraving, Max. Dia 200 mm, Max. Length 1800 mm |
| Power Supply | AC 420V / 3PH |
| Weight (approx.) | 1200 Kg. |
Specification are liable to change without prior notice. Note: AC420V power supply will be applicable for 6KW spindle.
Specification are liable to change without prior notice. Note : AC420V power supply will be applicable for 6 KW spindle.
