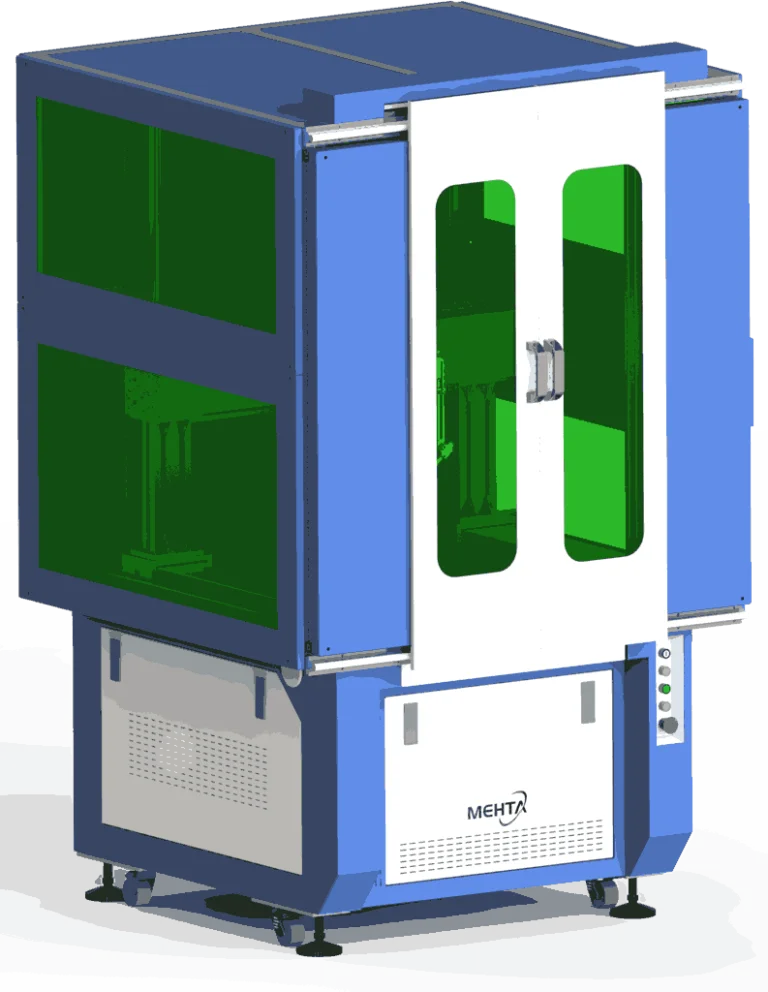

The 4-axis welding machine offers automated, high-precision welding for cylindrical and complex components.
The 4-axis welding machine offers automated, high-precision welding for cylindrical and complex components. It improves productivity and consistency in industrial manufacturing, ensuring strong, accurate welds on metals and alloys.
REX Series of Digital Cutting Systems can also be called Flatbed Cutting Plotter / Knife Cutter. It has Multi-Axis control systems; it has two holders and three holders system. Any two tools can be fit in two holders system as per requirement and in three holder system any two tools and one spindle as third tool can be fitted. REX Cutting Systems can be used to cut varieties of materials because of availability of different types of tools, for examples Corrugated Paper, Rubber, Leather, PU (Artificial Leather), Honeycomb Board, PP, PE, Corrugated PVC, PVC, Cardboard, Carpet, Met, Fabric, Hard Fabric, Etc. Optional camera system is also available for cutting borders after print on any substrates.
High Torque yet Low Vibration; Stable, and Accurate Printing.
CNC Aluminium Beam support with Dual Linear Guides for High Speed Printing.
High density, Sturdy Print head with grayscale technology.
Powerful IR Heater with Enabling High Speed Printing Capability.
Super Precision with Low Friction Noise
Anti Collision System to Protect Print Head during High Speed Printing.
Media stepping & stretching tension is adjustable to keep media going accurately.
Empower tour workflow with efficient tools and features designed for all production environments.
REX Series of Digital Cutting Systems can also be called Flatbed Cutting Plotter / Knife Cutter. It has Multi-Axis control systems; it has two holders and three holders system. Any two tools can be fit in two holders system as per requirement and in three holder system any two tools and one spindle as third tool can be fitted. REX Cutting Systems can be used to cut varieties of materials because of availability of different types of tools, for examples Corrugated Paper, Rubber, Leather, PU (Artificial Leather), Honeycomb Board, PP, PE, Corrugated PVC, PVC, Cardboard, Carpet, Met, Fabric, Hard Fabric, Etc. Optional camera system is also available for cutting borders after print on any substrates.
For cutting printed material automatically with high precision.
Inline with international standards of infrared anti-collision device ensure the safety of operating personnel.
Cutting the material without stop table move automatically improving the work efficiency.
Oscillating tool, Creasing Wheel Kiss-cut, V-cut, Foam cut, Milling Cut, Circular Cut Etc..
Cut the material smoothly in high speed.
High-precision,high speed Japanese brand servo motor.
Suction holistic approach to ensure cutting accuracy.
Automatic Feeding System (optional)
| Model | REX 1325 | REX 1832 | REX 2530 |
| Effective Cutting Area | 1300 x 2500 mm | 1800 x 3200 mm | 2500 x 3000 mm |
| Machine Power | 4 KW | ||
| Suction Power | 12.5 KW | ||
| Operation Properties | Work with computer synchronously for quick data transmission, multi-page file in one time | ||
| Max. Cutting Speed | 0-1400 mm/s | ||
| Cutting Thickness | ≤50 mm | ||
| Cutting Materials | Corrugated board, Plastic Corrugated Board, Thick Grey Cardboard, PVC Sheets, Foam Board, EVA Board, KT Board, Adhesive Sheet, Gasket, Leather Etc. | ||

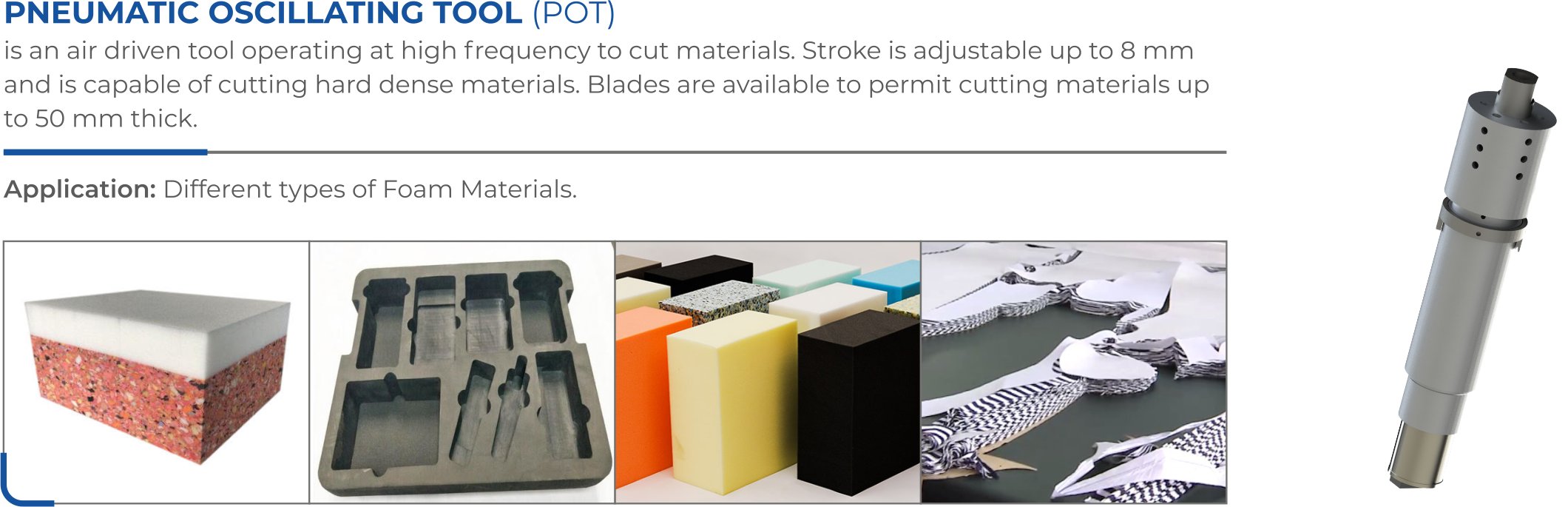

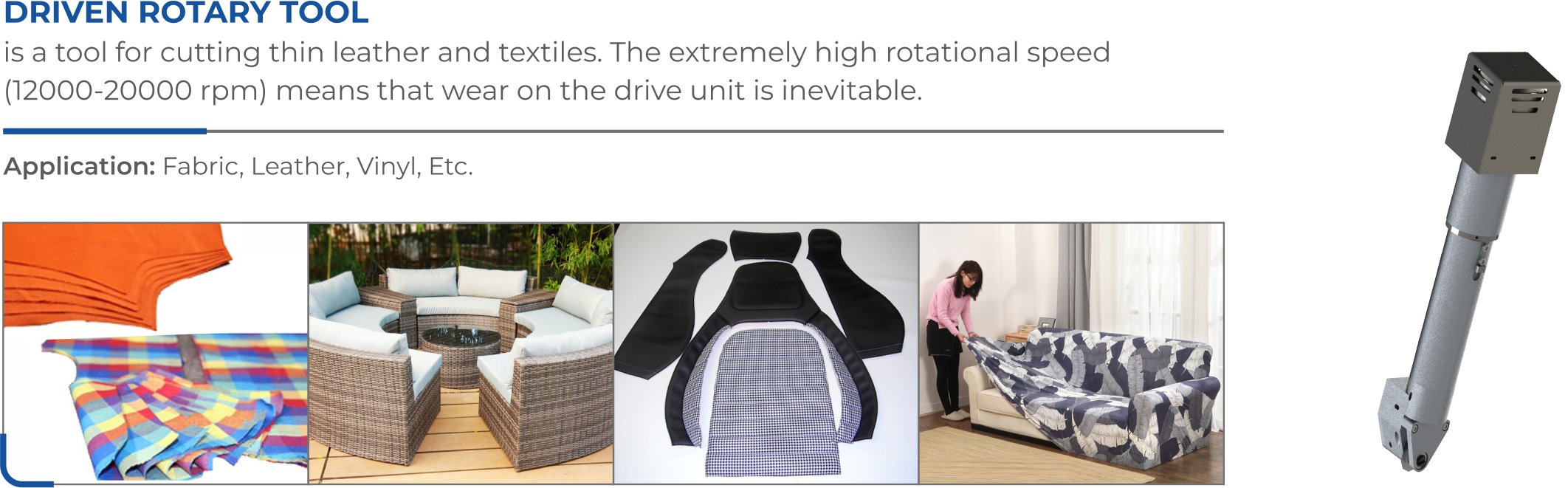

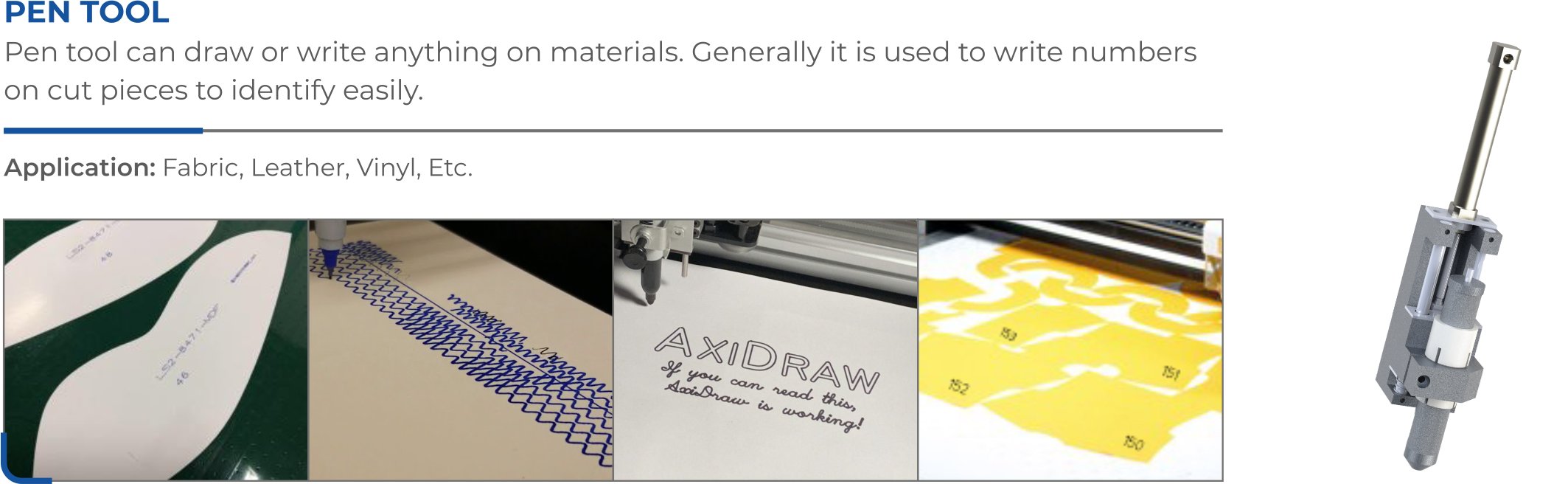

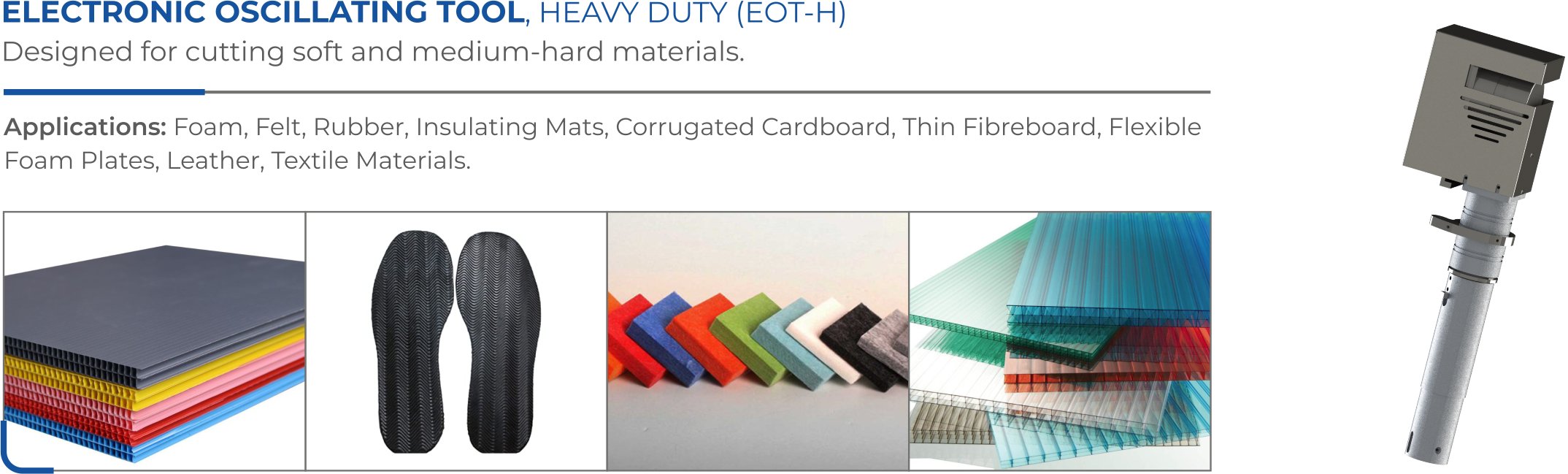

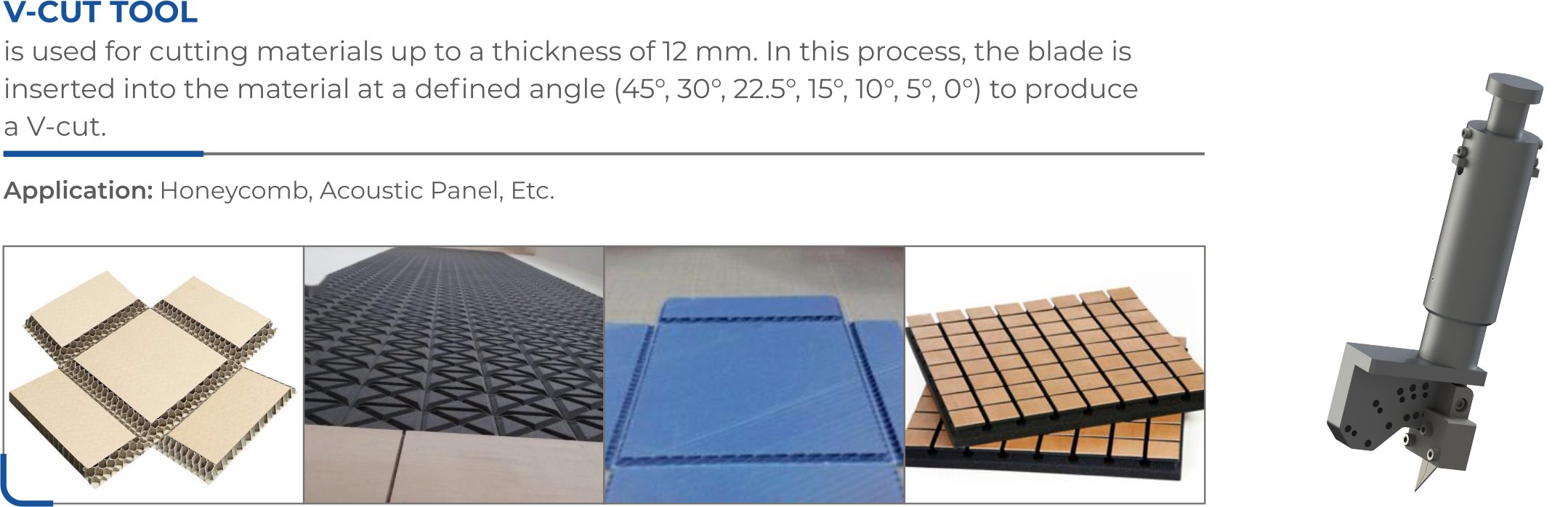

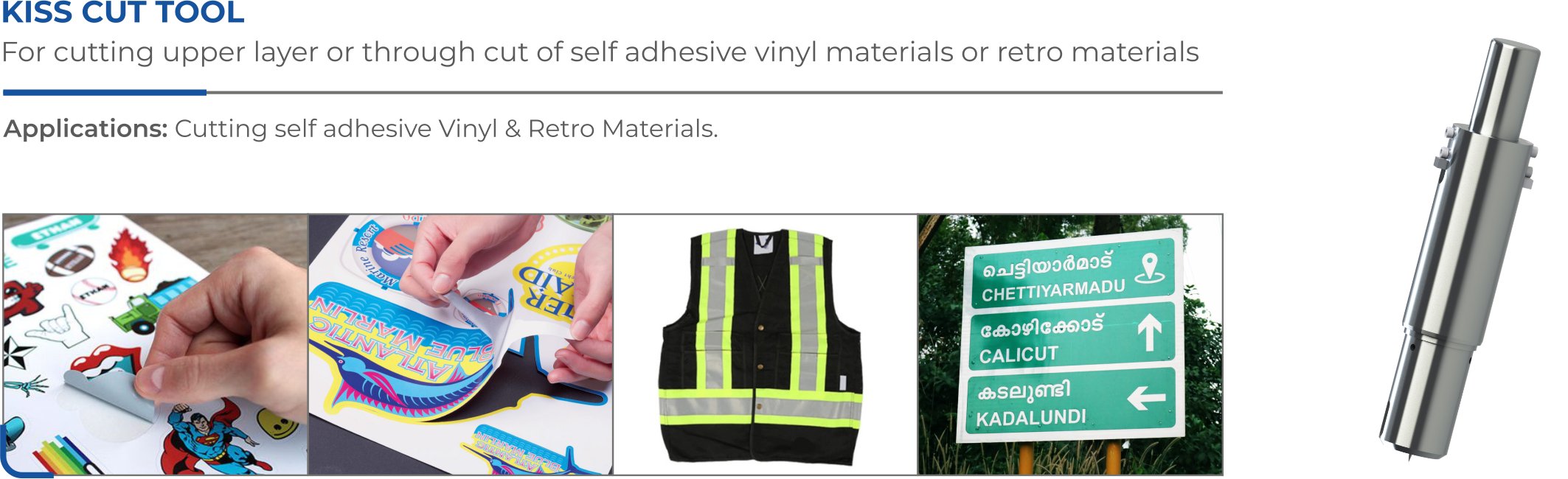

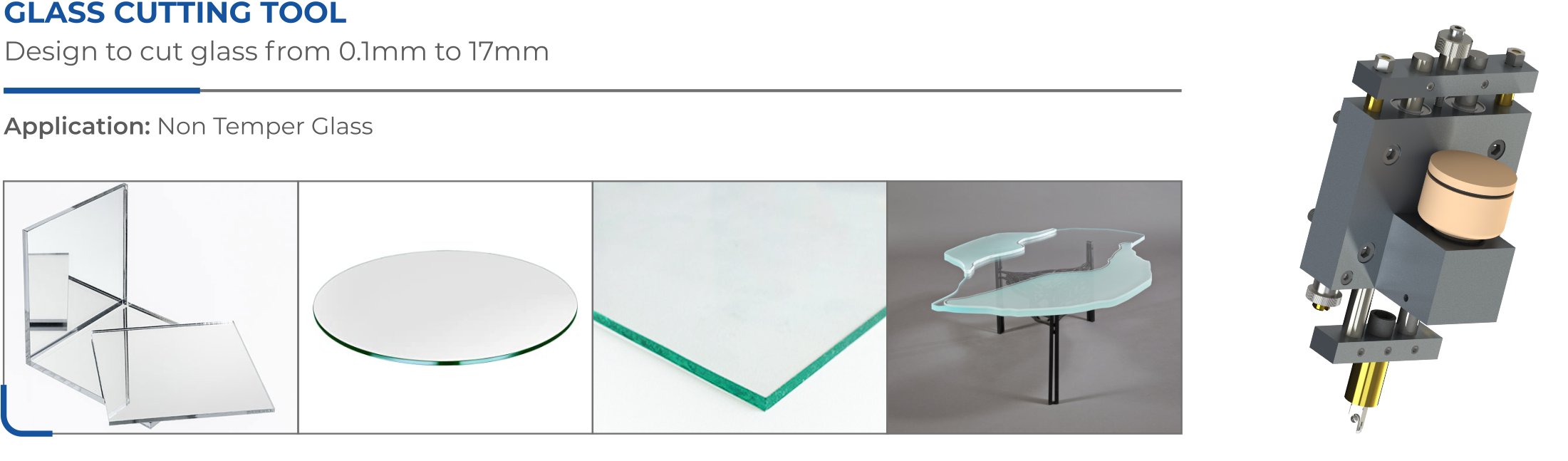

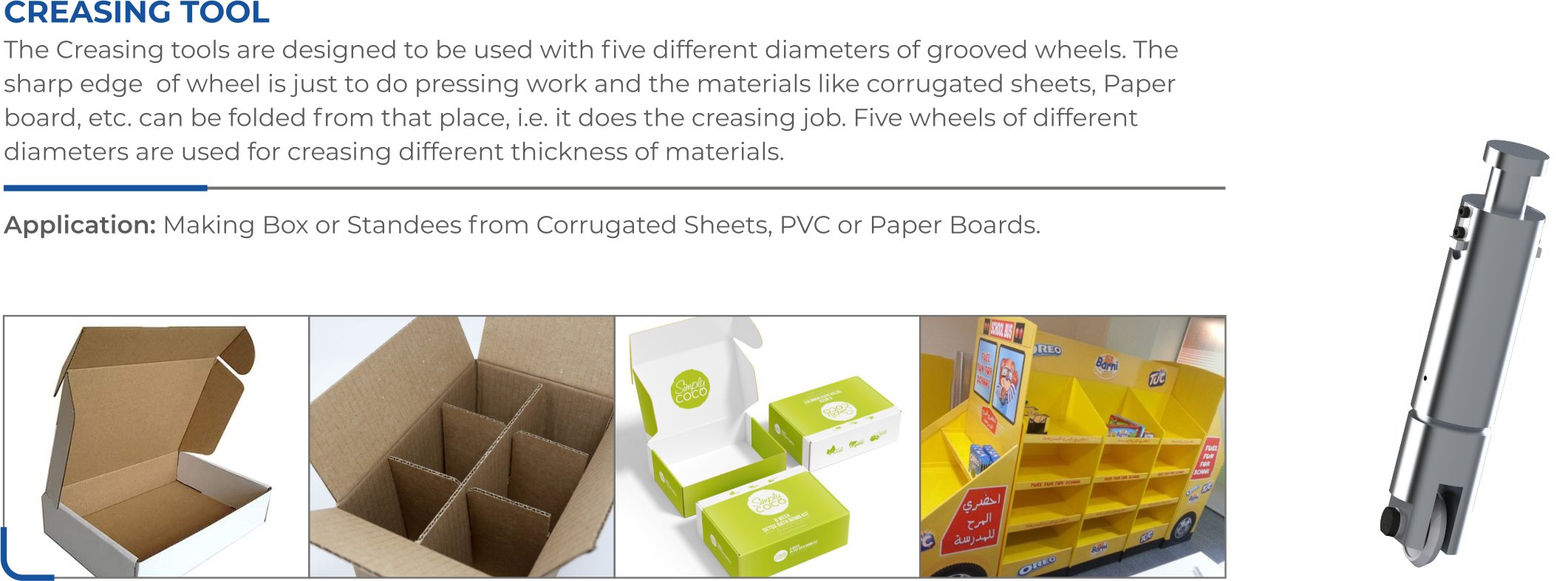

| Standard Tools | Electronic Oscillating Tool (EOT), Electronic Oscillating Tool Heavy Duty (EOT-H), Creasing Tool, Pneumatic Tool (POT), Drag Cutting Tool, Kiss Cut Tool, V-Cut Tool, Driven Rotary Tool, Pen Tool, Spindle Tool, Glass Cutting Tool | ||
| Option | Creasing Wheel, Foam Cut, V-Cut, Milling Tool | ||
| Fixing Method | Vacuum Suction | ||
| Repeat Precision | ≤0.01 mm | ||
| Software Resolution | 0.025 | ||
| Interface | Ethernet Port | ||
| Buffer Memory | Fast Transmission for Multi-Page Large File | ||
| Command Mode | HP-GL Compatible Format | ||
| Format Compatible | Like any CAD Software, Like AI / CorelDraw / AutoCAD Etc | ||
| Control Panel | 7 Inch Colour Touch Screen | ||
| Driving System | Digital Servo Motor, Straight Rail | ||
| Voltage / Power | AC 380V±10% 50HZ | ||
| Fuse | 6A / 30A | ||
Related Plotter

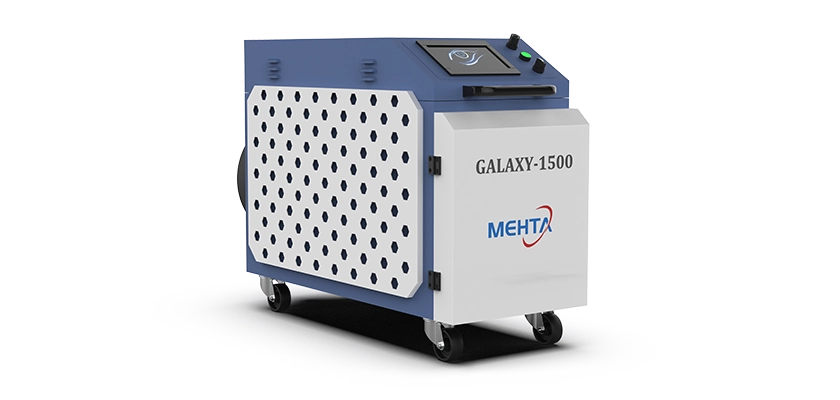

This handheld fiber laser welding machine allows precise, high-strength welding on metals…
