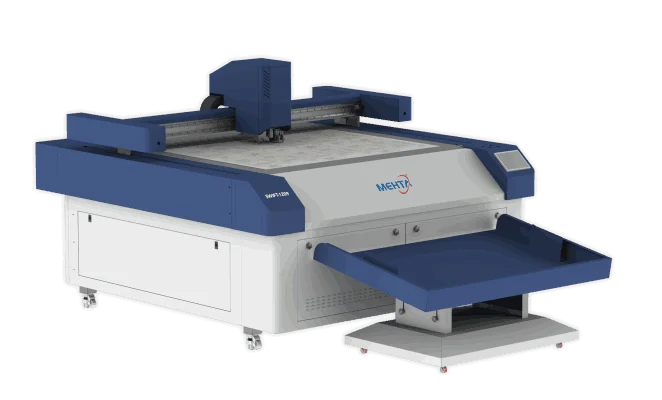

Flatbed Cutting Plotter

Conveyor Belt

Features

REX Series of Digital Cutting Systems can also be called Flatbed Cutting Plotter / Knife Cutter. It has Multi-Axis control systems; it has two holders and three holders system. Any two tools can be ﬁt in two holders system as per requirement and in three holder system any two tools and one spindle as third tool can be ﬁtted. REX Cutting Systems can be used to cut varieties of materials because of availability of different types of tools, for examples Corrugated Paper, Rubber, Leather, PU (Artiﬁcial Leather), Honeycomb Board, PP, PE, Corrugated PVC, PVC, Cardboard, Carpet, Met, Fabric, Hard Fabric, Etc. Optional camera system is also available for cutting borders after print on any substrates.

Auto camera position system	High Speed Oscillating Tool
For cutting printed material automatically with high precision.	Cut the material smoothly in high speed.
Safety of operating personnel	High-precision
Inline with international standards of infrared anti-collision device ensure the safety of operating personnel.	High-precision,high speed Japanese brand servo motor.
Conveyor table	Suction holistic
Cutting the material without stop table move automatically improving the work efficiency.	Suction holistic approach to ensure cutting accuracy.
A variety of optional tools: Oscillating tool	Automatic Feeding System
Oscillating tool, Creasing Wheel Kiss-cut, V-cut, Foam cut, Milling Cut, Circular Cut Etc..	Automatic Feeding System (optional)

Technical Specification

Model	REX 1325	REX 1832	REX 2530
Effective Cutting Area	1300 x 2500 mm	1800 x 3200 mm	2500 x 3000 mm
Machine Power	4 KW
Suction Power	8.6KW / 12KW
Operation Properties	Work with computer synchronously for quick data transmission, multi-page ﬁle in one time
Max. Cutting Speed	0-1400 mm/s
Cutting Thickness	≤50 mm
Cutting Materials	Corrugated board, Plastic Corrugated Board, Thick Grey Cardboard, PVC Sheets, Foam Board, EVA Board, KT Board, Adhesive Sheet, Gasket, Leather Etc.
Standard Tools	Electronic Oscillating Tool (EOT), Electronic Oscillating Tool Heavy Duty (EOT-H), Creasing Tool, Pneumatic Tool (POT), Drag Cutting Tool, Kiss Cut Tool, V-Cut Tool, Driven Rotary Tool, Pen Tool, Spindle Tool, Glass Cutting Tool
Option	Creasing Wheel, Foam Cut, V-Cut, Milling Tool
Fixing Method	Vacuum Suction
Repeat Precision	≤0.01 mm
Software Resolution	0.025
Interface	Ethernet Port
Buffer Memory	Fast Transmission for Multi-Page Large File
Command Mode	HP-GL Compatible Format
Format Compatible	Like any CAD Software, Like AI / CorelDraw / AutoCAD Etc
Control Panel	7 Inch Colour Touch Screen
Driving System	Digital Servo Motor, Straight Rail
Voltage / Power	AC 380V±10% 50HZ
Fuse	6A / 30A
Specifications are liable to change without prior notice. All trademarks mentioned are property of their respective owners.
