Technical Specification
| MODEL | HT PRO | |
| Suitable Material |
Flat Alumininum, Single Edge, Side Light, Channalume, Stainless Steel,Galvanized Iron |
|
| Feeding Method |
Rolling Feeding | |
| Slotting Method |
Milling Cutter & Planner Knife | |
| Bending Method |
Double Alternate Grooved Cylinder & Double Alternated Blade | |
| Cutting Depth Calibration |
By Software | |
| Material Height & Thickness |
25 mm – 160 mm & 0.3 mm – 1.2 mm | |
| Slot Degree |
45 – 135 Degree | |
| Input File |
.DXF / .PLT/ .AI | |
| Accuracy |
±0.1 mm | |
| Voltage |
AC 200-220V / 55Hz / 1KW Air | |
| Air Source |
0.6m3 / min |
|
| Working Are (L x W x H) |
2620 mm x 1150 mm x 1590 mm | |
| Weight |
580 kg | |
*Specification are liable to change without prior notice.
Features
- Multifuntional Bending Machine
- Combination of HT1 and HT3
- Suitable for all Aluminium Strips, Profiles and Stainless Steel Materials
- Two Separate Software
- Budget Friendly
 |
 |
 |

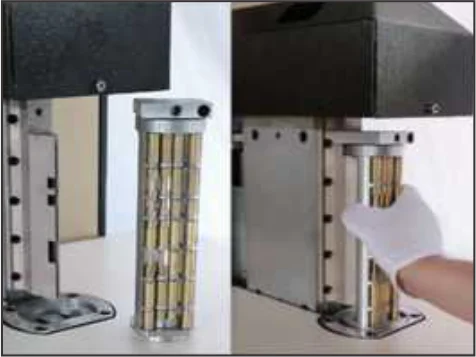

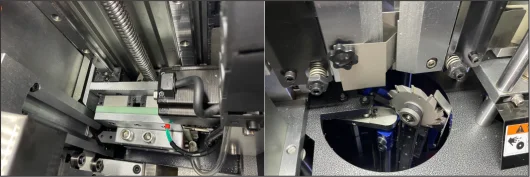

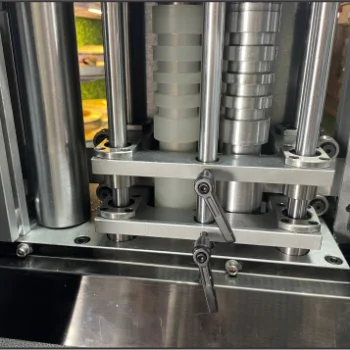

| Double alternate grooved cylinder & double alternate blade | Rolling Feeding Device | Milling Cutter & Planner Knife |
