High Speed Laser cutting and Engraving Machine (3D scan head system)
ERINA 150WS
![](https://mehtaindia.com/wp-content/uploads/2023/04/Erina-100-877x1024.png)
Features
The laser system is equipped with 150 watt, 300 watt or 600 watt CO2 RF laser with dynamic focus covering 500 × 350 mm processing field. |
Web Guide is equipped to make the unwinding more precise, thus ensuring the accuracy of laser cutting. |
Using high-speed galvanometer laser cutting on the fly, ERINA 150WS standard with unwinding, rewinding and waste removal units, the laser system can achieve continuous and automatic laser cutting for labels. |
Maximum cutting speed is up to 80 m/min (for single laser source), maximum web width 350 mm. |
Technical Specification
Model | ERINA 150WS |
Working area | 500 mm x 350 mm |
Laser Power | 150W (Optional 300W, 600W) |
Laser Type | Co2 Metal Laser Tube | Laser Path | Galvo based Systems |
Head | Single Head |
Laser Focus | Manual Systems |
Material Feeding | Web Transport Systems (Roll To Roll) |
Max Cutting Thickness | 2 mm |
Max Cutting Speed | 0-1350 mm/s |
Positioning Accuracy | 0.1 mm/m |
Cooling System | Water Cooled |
Drive System | Servo with Gearbox |
Graphic Format | DXF, PLT |
Air Pressure | 6 Bar Require (Dry Air) |
Machine Supply | 3-Phase 400v 50Hz |
Air Compressor | Optional |
*Specification are liable to change without prior notice. |

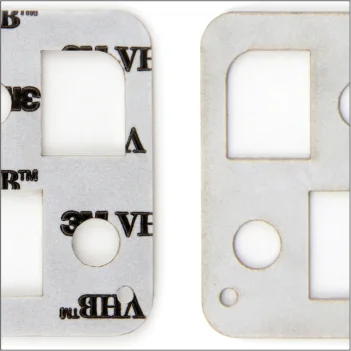

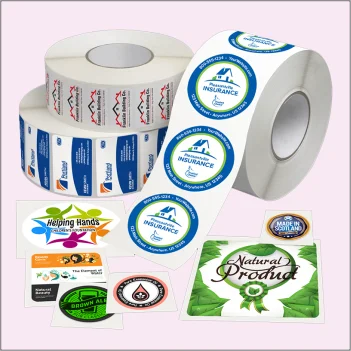

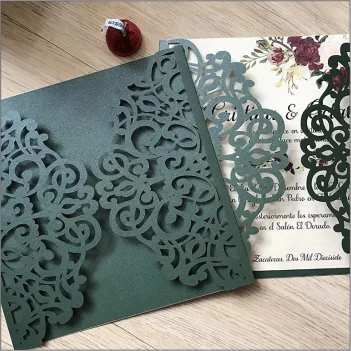

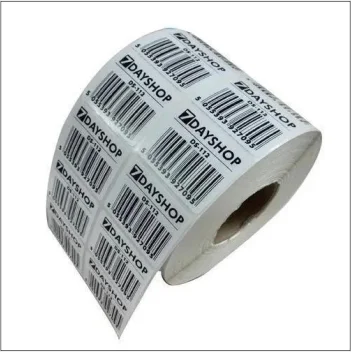

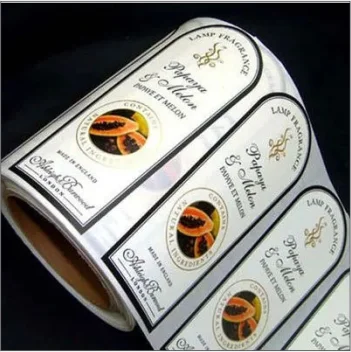

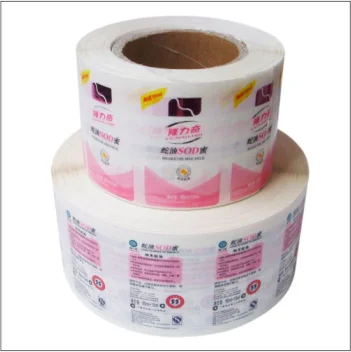

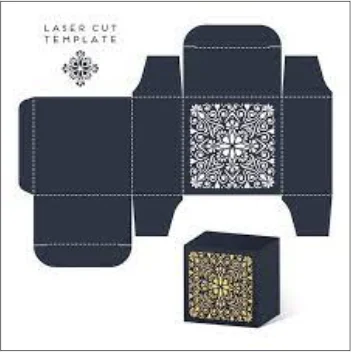

Applications
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
